Design by jonbourg · Original design · CC-BY-SA-4.0 · Source details. Indexed via 3DCarParts. Source text and images remain credited to their creators; no modified design files supplied.

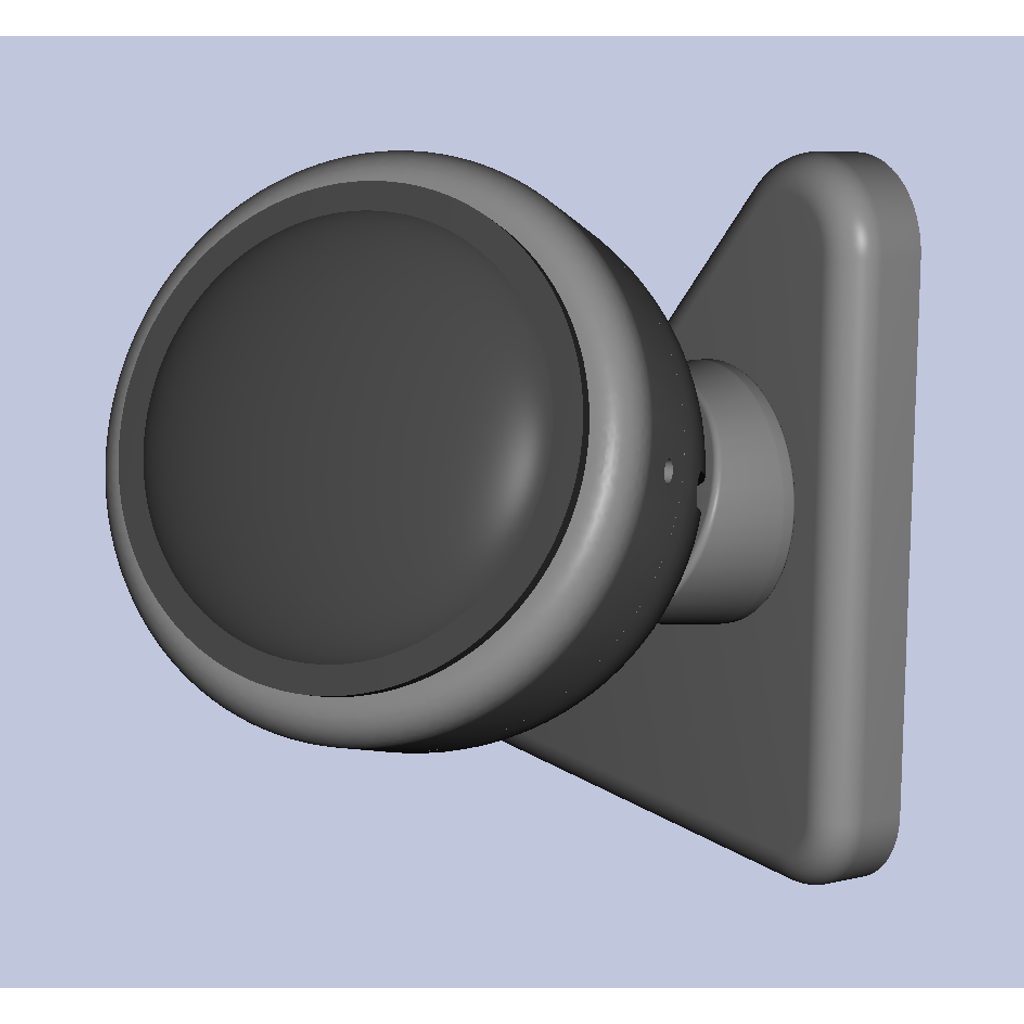

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Tweeter Pod Mount
Tweeter Pod Mount design listed for 2004–2006 Lexus RX330. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Lexus
- Model
- RX330
- Year range
- 2004–2006
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
For the Lexus RX330 these will fit where the original tweeter goes, but the tweeter will be mounted on the outside of the panel. The screen that covers the OEM tweeter will have to be removed and the a piller interface part put in its place. To mount this use the a piller template to locate and drill holes into the a piller trim panel. The template has a small hole next to one of the mount holes. This side goes to the top.
The a piller interface and the template are for the passenger side of the vehicle. Mirror these in your slicer for the driver side. Also mirror the angled mount for the drivers side. Print two each of the pods and tweeter mounting rings.
HARDWARE: Suggest using a 4mm bolt and washers as needed to mount the speaker pod. Use small 3mm self tapping screws to mount the tweeter mount ring to the pod.
Recommend printing these with ASA filament.
All models made with Freecad
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
All available source data
- Id
- 4a15c436-907b-424e-bc5b-c30129d9b6f2
- Part Name
- Tweeter Pod Mount
- Slug
- tweeter-pod-mount
- Category
- interior
- Cswp Approval Status
- pending
- Download Status
- approved
- Make
- Lexus
- Model
- RX330
- Year
- 2004
- Year End
- 2006
- Submodel
- Not supplied
- Engine
- Not supplied
- Created At
- 2026-07-08T07:09:06.022759+00:00
- Origin
- aggregated
- Source
- thingiverse
- Source Url
- https://www.thingiverse.com/thing:6536761
- Source Creator Url
- https://www.thingiverse.com/jonbourg
- Cc License Code
- CC-BY-SA-4.0
- Cc License Url
- https://creativecommons.org/licenses/by-sa/4.0/
- For Sale
- No
- Fulfillment Mode
- platform
- Manual Price Cents
- Not supplied
- Image Url
- https://r2-upload.3dcarparts.workers.dev/file/parts/4a15c436-907b-424e-bc5b-c30129d9b6f2/images/tweeter-pod-mount-1_1783494547018_kvp9gp.jpg
- Author
- jonbourg
- Estimated Price Cents
- Not supplied
- HasMultipleModelFiles
- No
- ModelFileCount
- 0
- Download Count
- 0
- Detail Url
- https://3dcarparts.org/library/2004-2006/Lexus/RX330/tweeter-pod-mount
Source price fields and sale flags are metadata, not our selling prices. Their currency was not specified in the catalog. File counts do not mean files were downloaded or tested. No manufacturer savings or discontinued status is inferred.
