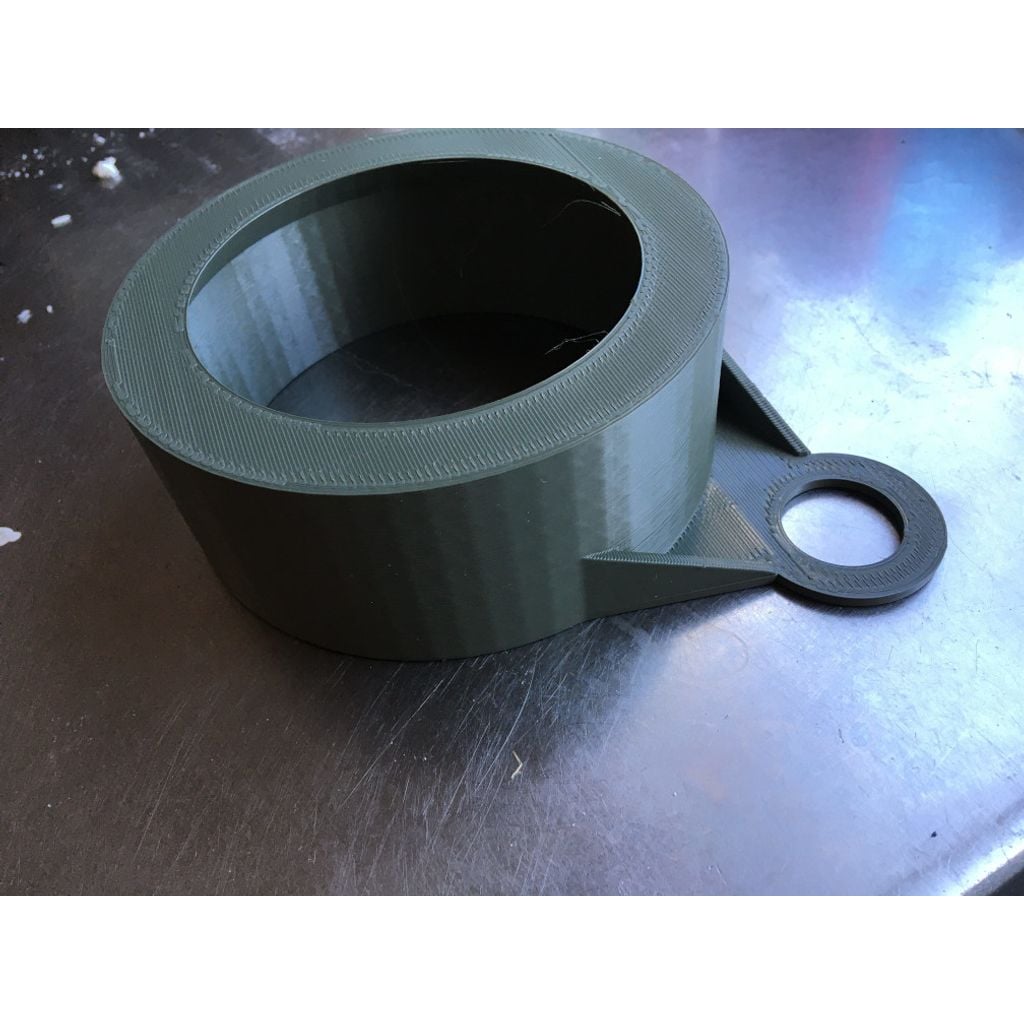

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
rear speaker box
rear speaker box design listed for 1998–2005 Mazda MX-5 Miata. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- MX-5 Miata
- Year range
- 1998–2005
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
It's secured using the original screws on either side, the ones with the plastic cone-thing.
Thus no drilling in the car needed. Though drilling is needed in the tube/tower for the speakers screws.
Should be noted if it's not clear from the pictures, my car has no soft-top, only hardtop.
There is not space for these if you still have a soft-top.
My speakers are 50 mm deep so I made the tower/tube 55 mm.
Yes, the speakers are small, but I had them so in they went.
Yes the tubes are ugly, I made the model in https://www.tinkercad.com/ and for some reason the smoothest you can get a cylinder is "64 sides".
I printed in cheap PLA, https://www.3dprima.com/se/filament/3d-prima-basic-pla-1-75mm-1-kg-grey/a-26002
Again, it's what I had on hand.
Printed on my CR-10 MAX with micro switch hotend
0.8 nozzle
sliced in Cura
layer height 0.32
initial layer line width 105%
infill 40
infill pattern cubic
infill overlap 40%
print temp 225c
build plate temp 75c
initial layer flow 105%
fan speed 70
initial fan speed 10
no supports
brim
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
