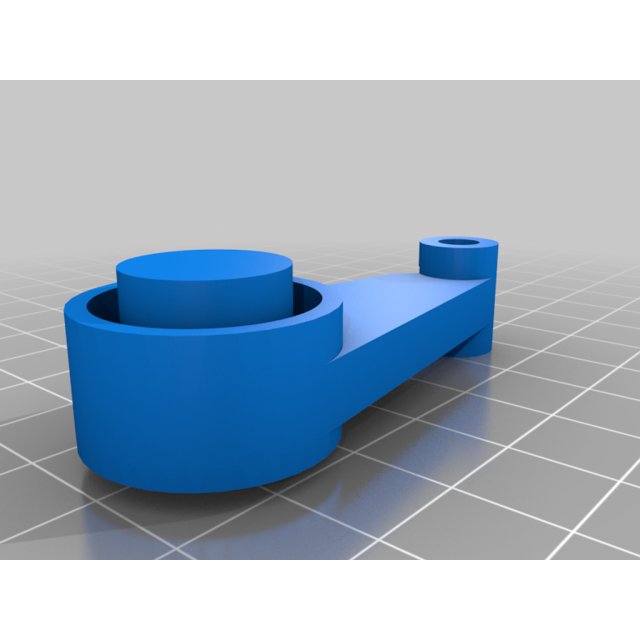

HVAC Recirculation Actuator Lever Arm
HVAC Recirculation Actuator Lever Arm design listed for 2007–2008 Ford Fiesta. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- Fiesta
- Year range
- 2007–2008
- Submodel
- XR4
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I printed in PLA with the actuator key side up, and used tree supports touching everywhere - in order to get a little bit of extra support for the smaller side of the lever that's a bit complicated for taking the cable end. I just clear the support away with a knife and a drill at the end of printing.
Probably best with 100% infill for maximum strength, but I did mine at 50% infill and it seems strong enough in testing. I'd suggest printing in PETG or ASA if your car is in a summer climate, like us, as in car temps can exceed the temp that PLA is stable.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
