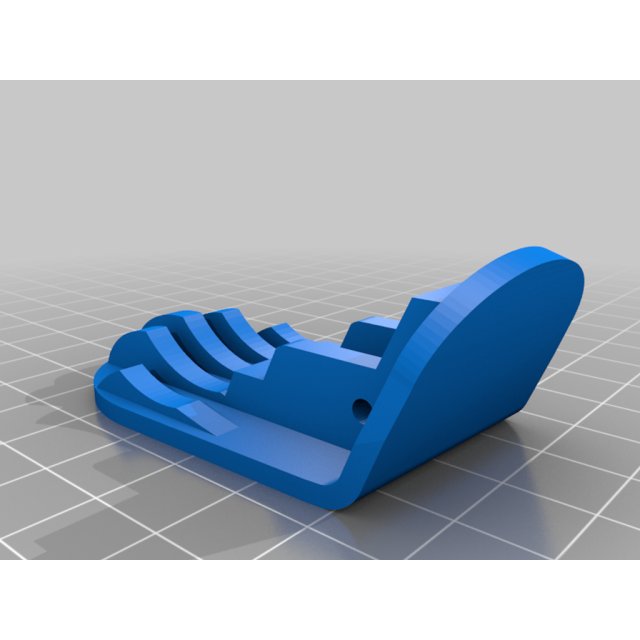

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Frunk Hooks
Frunk Hooks design listed for 2020 Tesla Model 3. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Tesla
- Model
- Model 3
- Year range
- 2020
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
See updates below.
Very nice original model. Thanks for sharing!
I prefer to use screws over printed pins and like to avoid supports when possible, so I remixed these frunk hooks to use M3 screws.
It's a little klugey - not sure if the original STLs were screwy or if it's because I imported the STLs into Sketchup to modify, That gets a little dicey sometimes. However, they print and work great. I merely replaced the pins on the hook with an M3 through-hole and sized the holes in the hook base appropriately. The hook through-hole doesn't actually go all the way through (too much trouble to fix the non-parallel surfaces using Sketchup) in the stl but the wall is so thin that it printed as a through-hole for me.
I printed with black PETG at .2 layer height, 3 perimeters and 30% fill. They feel very stout.
The cap-head M3 screws thread directly into the base and I'm sure will be plenty strong. I used M3 x 10 mm. Shorter ones will work just fine. Longer ones will not as they will hit in the middle.
I also used matte black wrap vinyl to cover the exposed hook surface. Looks nice. Yes, those in the installation photo are the printed versions.
Update 3/25/2020: New hook files (the "A" versions). The through-hole was .4 mm out of position compared to the original model. Hole was moved and is now perfectly aligned with parent. I have not printed these versions but they should be otherwise identical.
Update 5/13/20: Gawd, I hate the redesigned Thingiverse interface! Where did the link to the parent design go? This design is a remix of: https://www.thingiverse.com/thing:4081529 by HappyPEJ
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
