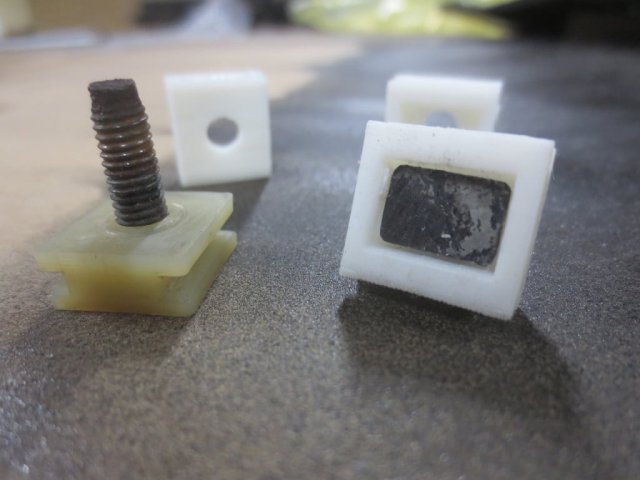

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
3rd Brake Light Stud Retainer
3rd Brake Light Stud Retainer design listed for 1996 Nissan 300ZX. Listed category: lighting. Verify dimensions, fitment and material suitability before printing.
- Make
- Nissan
- Model
- 300ZX
- Year range
- 1996
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description
Printed without support by flipping the part on its end. Very little sagging due to the very short distance that needed bridged.Print settings were 3 shell, .2 layer height, no support, and 85% infill.
Let me know of any questions or concerns. Hope it helps =)
Source description, under the recorded CC-BY-4.0 license.
Print instructions
Brand: MakerBot
Printer: MakerBot Replicator 2
Rafts: Doesn't Matter Supports: Doesn't Matter Resolution: .2 Infill: 85% Notes: I printed without support or raft. I just flipped the part on its end to eliminate the need for support.
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Cost examples only. This design is not offered for sale; permission or specialist application review is required.
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
