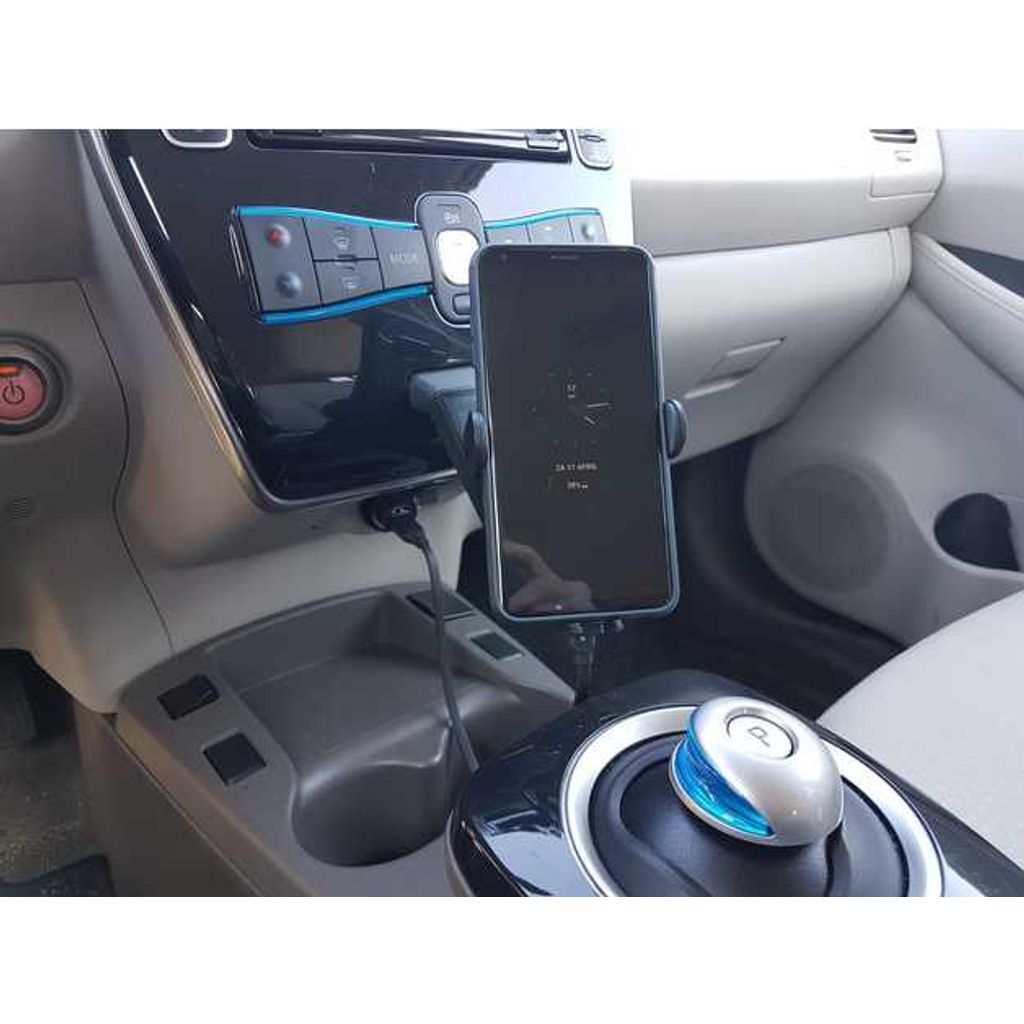

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Wireless charger / phone holder bracket
Wireless charger / phone holder bracket design listed for 2011–2017 Nissan Leaf. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Nissan
- Model
- Leaf
- Year range
- 2011–2017
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
It is mounted in the position of the airbag status light (this can always be restored without any damage). To mount it, first remove the center dash panel by pulling on the bottom. then unscrew the airbag status light but keep the connector attached to prevent warnings. Use a tiewrap to attach the status light to the cable loom behind the dash so it doesn't fling around.
Then mount the bracket using the same screws that were used for the airbag status light. After that you can mount the wireless charger using an M8 screw. The wireless charger has to be modified by tapping M8 thread in the back of the mounting plate.
Products used:
- Wireless charger: aliexpress.com/item/4000252294546.html
- Dual USB Car charger: aliexpress.com/item/4000642795022.html
- Flat USB cable 32cm: aliexpress.com/item/32864036755.html
I used this thingiverse item to design the part: https://www.thingiverse.com/thing:3364710
See the link for more photo's how it looks behind the dash.
Video: https://www.youtube.com/watch?v=Ef-KE9Mwn2w
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
