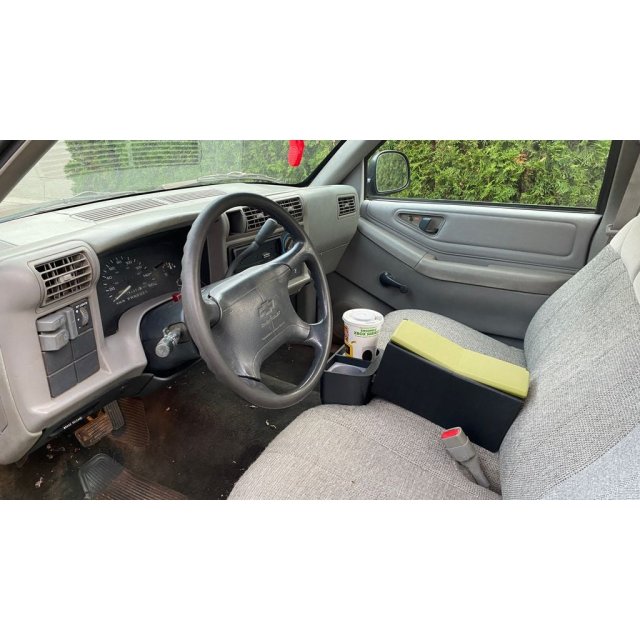

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Cupholder and Center Console
Cupholder and Center Console design listed for 1994–2004 Chevrolet S10. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Chevrolet
- Model
- S10
- Year range
- 1994–2004
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
All of the parts are sliced into different pieces to be super glued together. I did this to reduce the amount of support material required, along with the ability to print these on smaller printers.
The only supports needed are for the base/bottom half. Also, the L shaped guides should be printed separately with a higher infill density for extra strength. With a lower infill, they could snap off (I learned this the hard way).
Notes:
- I do not recommend using hot glue instead of super glue because it could soften in hot summer conditions. You can see that my console lid is a bit warped due to the heat, but it still works fine. (I used PLA)
- You will not be able to fold the bench seat down with the center console there. This is why I made a cupholder only design so you would still have access to the middle seat and behind the bench.
- These cupholders are removable in case you want to swap it out for something else. It uses the same mounting design as the factory cupholders.
- The cupholder's diameter is 80mm.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
