Vent Grille Repair Bracket
Vent Grille Repair Bracket design listed for 2006–2014 Opel Corsa. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Opel
- Model
- Corsa
- Year range
- 2006–2014
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Looking into the issue I fount that there are mainly two root causes for this:
1) The vertical fins are stuck, rotates very hard due to high friction (due to dirt, leak of lubricant etc.) with the vent case;
2) The holder of the vertical fins knob is cracked as you can see in one of the attached pictures. This causes a lose of the vertical fins moving mechanism which loses mechanical contact to the vertical fins so they are not moving anymore.
Here is what I have done to fix the problem:
- Cleaned the vent grill of dirt and old lubricant;
- Enlarged the holes into which the vertical fins are fixed by about 0.2 mm (top and bottom as well, see attached pictures) so they will rotate more easily;

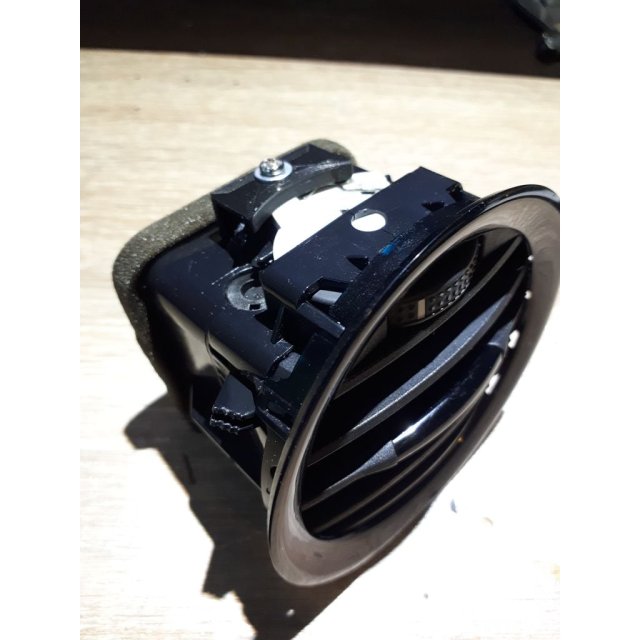

- mounted a fixing mechanism for the fins rotating mechanism so mechanical contact is tighten, see attacked .stl file for the fixing piece.
- The fixing fiece is mounted using an M3 screw and not, you will have to drill a 3.5 mm hole in the case of the vent grill as shown in the pictures.
- lucricate mechanism and job done!
