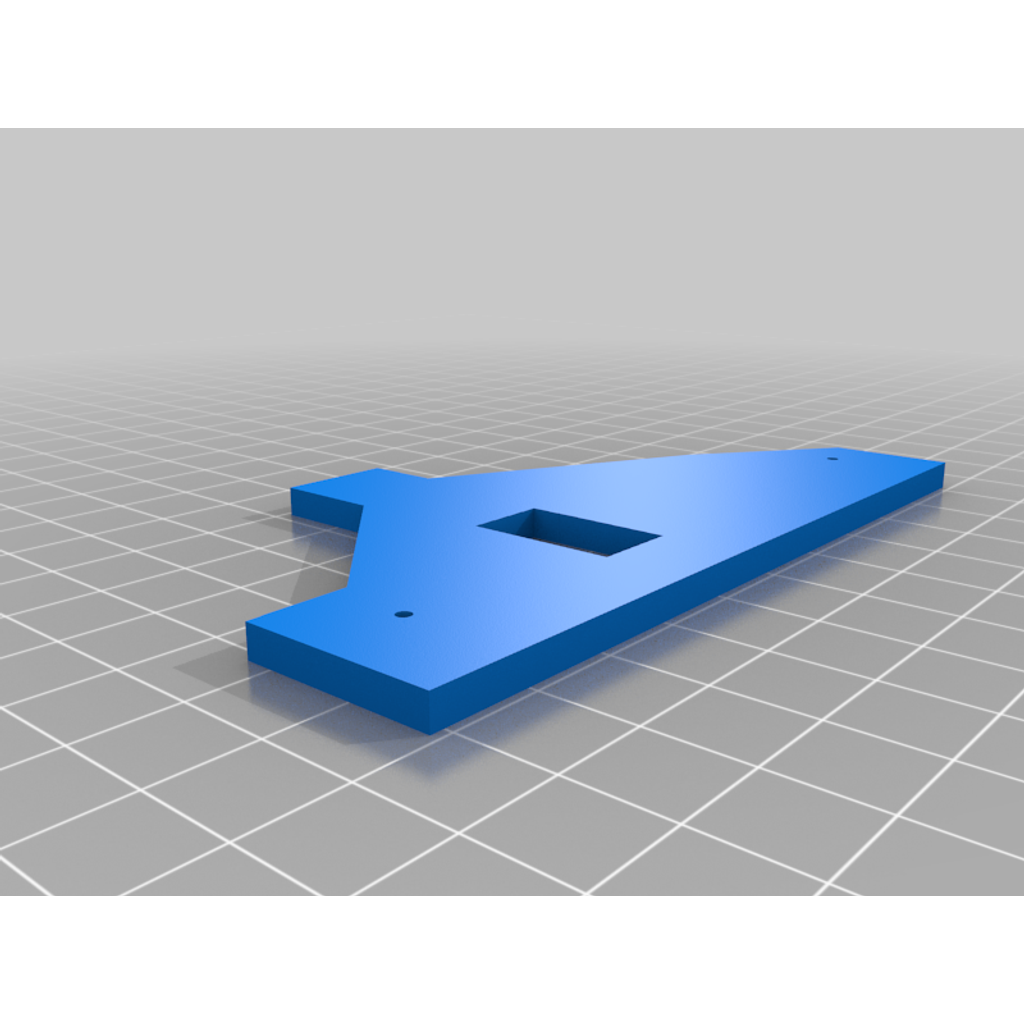

Warning Triangle Mount
Warning Triangle Mount design listed for 2011–2015 VW Passat. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- VW
- Model
- Passat
- Year range
- 2011–2015
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
v2:New version. It is more stable (larger area and thickness). Now it gets tight and has no play after it has been closed.
Repair for the warning triangle bracket. There are now 3 attachment points.
I cut out the broken part (red marked, probably not necessary) and attached it with 2 plasterboard screws (3.9 x 25 mm). Actually wanted to use an M3 / M4 nut + screw - but didn't want to remove the entire cover.. If the drill holes are too small, they can be re-drilled quickly or enlarge with a e.g. screwdriver.
*****************
German:
v2: Neue Version. Die ist stabiler (grössere Fläche und Dicke). Jetzt wird es stramm und hat kein Spiel nachdem es geschlossen wurde.
Reparatur für die Warnung-Dreieck-Halterung. Jetzt gibt es 3 Befestigungspunkte.
Ich habe die kaputte Stelle rausgeschnitten (rot markiert, wahrscheinlich nicht notwendig) und es mit 2 Gipsplattenschrauben (3,9 x 25 mm) befestigt. Wollte eigentlich eine M3/M4 Mutter+Schraube verwenden - hatte aber keine Lust die komplette Abdeckung abzubauen. Sollten die Bohrlöcher zu klein sein, kann man sie schnell Nachbohren bzw. mit z.B. Schraubenzieher vergrößern.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
