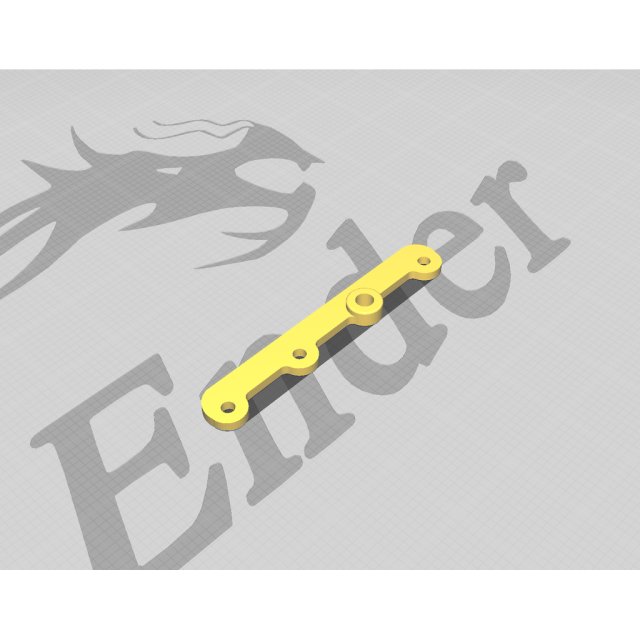

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Vent Vane Connecting Rod
Vent Vane Connecting Rod design listed for 2004 Toyota RAV4. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- RAV4
- Year range
- 2004
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I designed this to fit my 2004 RAV4 (the model with the blinkers in the headlight housing, and not in the bumper bar).
I printed it with black filament, and now that it's back in the car it looks and works as it originally did.
It doesn't hurt to spray a bit of silicon spray on the moving parts in the vent so that there is less wear and tear.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
