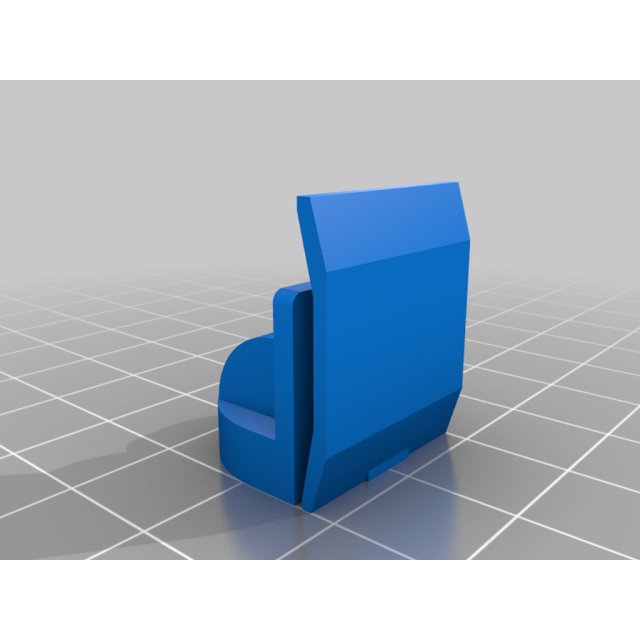

Tailgate Trim Clip
Tailgate Trim Clip design listed for 1996–2000 Volvo V70. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Volvo
- Model
- V70
- Year range
- 1996–2000
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
It requires cutting the face of the original mounting point (pic 2) and drilling 4 holes into the top of the trim (pic 3). If I remember correctly the center of the hole should be 12mm from the edge, but I'd recommend measuring yourself before drilling anything.
I eyeballed and market the center of the original mounting holes before removing them, the clip does have a bit of side to side wiggle room to allow so it doesnt need crazy precision.
This was done on a V70, might be different on an 850.
The screw hole was made for M4 coarse thread screws (the kind you find all over those cars).
Printed in PETG, on its side (pic4) so that the layers are perpendicular to the flexing point.
As of posting (03/2023) they have only been installed for a few days, I cant vouch for durability yet.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
