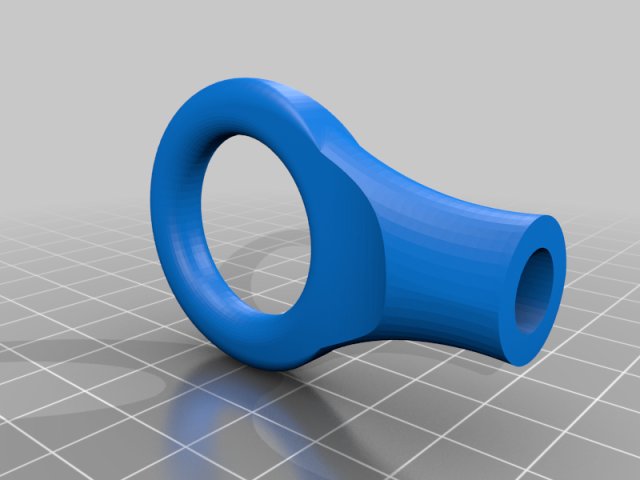

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Oil Dipstick Handle
Oil Dipstick Handle design listed for 1990 Mazda Miata. Listed category: engine. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- Miata
- Year range
- 1990
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description
Dipstick handle to replace the ever-broken handle on your Miata, MX5 or Eunos! I didn't like any of the other STL offerings online, so I designed this one instead! I have also included a sliced Cura profile I used for my final model in ABS if you'd like to save yourself some time and fire it straight into the printer!
If you found this useful, please donate what you think it is worth to my paypal.me, at https://paypal.me/danobriendesigns?locale.x=en_US to help cover the time of design.
Thanks, and Enjoy! Please feel free to ask any questions, or let me know if you have issues, I'm happy to help!
Updated 11/5/20 - On specific slicer settings, the printer sometimes had trouble printing the overhang, even with supports. That said, the file printed multiple times for me with no issues. Regardless, I made some tiny adjustments and that issue has been ironed out. Let me know if you have any issues!
Source description, under the recorded CC-BY-4.0 license.
Print instructions
Rafts: Yes Supports: Doesn't Matter Resolution: 0.28, or adjust to preference! Infill: 75 Filament: Any ABS, or anything heat resistant Your Choice!
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Cost examples only. This design is not offered for sale; permission or specialist application review is required.
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
