H11 Bulb Wrench
H11 Bulb Wrench design listed for 2015 Jeep Grand Cherokee. Listed category: specialty-tools. Verify dimensions, fitment and material suitability before printing.
- Make
- Jeep
- Model
- Grand Cherokee
- Year range
- 2015
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I did three iterations off the original idea.
1. same general design as original but made horizonal wall thicker

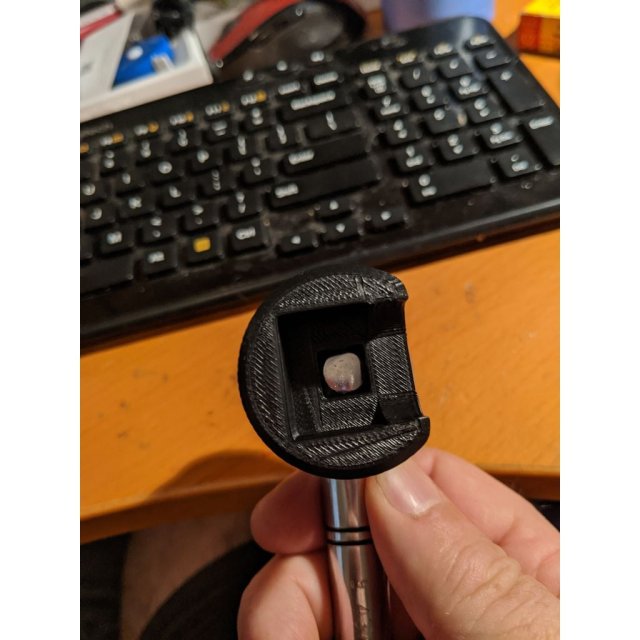

2. Version to work with a 3/8 socket wrench. Have not actually tried it but it should fit based on holding a wrench in place before I put things back together after using the original tool.
3. Like my socket version but with a handle. As Supermate91 suggest, you should consider tying a string to it and to your wrist in case you drop it inside the light enclsoure or down into the engine compartment. (I would print it out of something easy to see and not the black that I used.)
.Any layer height should work and fill of 15% and higher. I printed it out of ABS but NYLON, PLA, PETG should work fine.
WARNING: IF YOU USE THE SOCKET VERSION USE A LIGHT TOUCH. IT ONLY TURNS A 1/4 TURN. DON'T GO OVERBOARD. I put mine back end by hand without the tool.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
