Dash Storage Latch Hinge Bracket
Dash Storage Latch Hinge Bracket design listed for 2008–2016 Chevrolet Cruze. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Chevrolet
- Model
- Cruze
- Year range
- 2008–2016
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

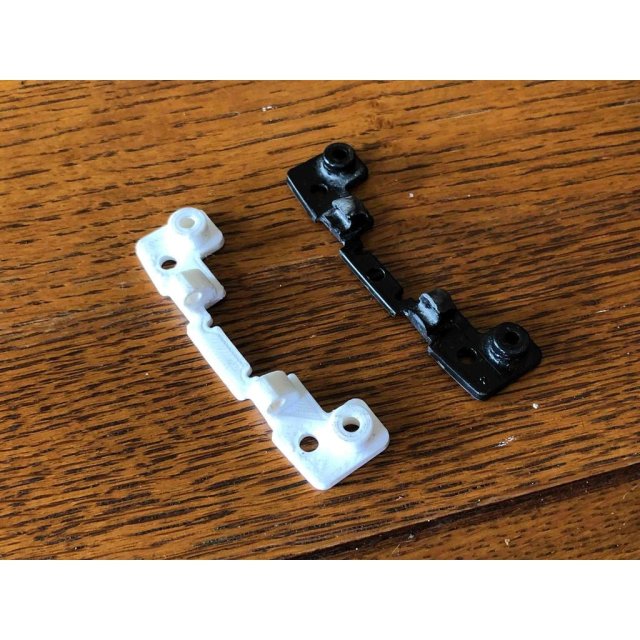

The bracket that holds the pivot rod of the latch is prone to failure. It failed on my car, and it failed on every car I found in the junkyard when I went searching to go replace it. I tried to fix it with some epoxy, but it didn't last. So, I decided to just remake the whole thing!
If you undo the two 7mm hex bolts underneath the rubber liner of the tray, pop the whole unit out, pop off the retaining clips and remove the pins for the door hinge, you'll have access to the T10 torx bolts that hold the underside of the tray to the top side. Once removed, you can simply unscrew the latch hinge bracket, push out the hinge pin, and swap everything over to the newly printed one. It may sound overwhelming, and that's because it is.
The whole process, start to finish, should take probably 15-20 minutes. You might have to drill out the hole for the hinge pin just a tad bit so it rotates freely, but other than that it should be a direct swap. Good luck!
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
