Climate Control Servo Shaft Extender
Climate Control Servo Shaft Extender design listed for 2001–2017 Citroen C5. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Citroen
- Model
- C5
- Year range
- 2001–2017
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

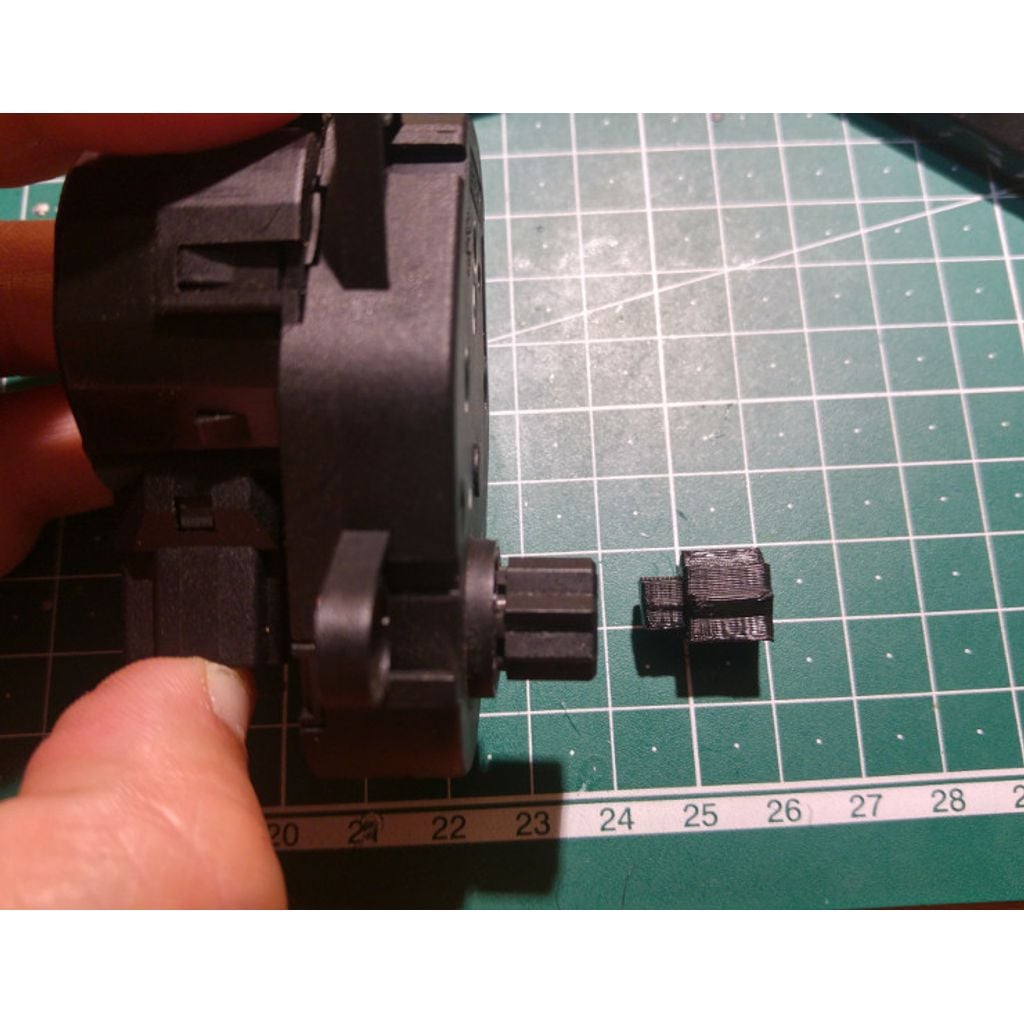

Extension for the shaft of the climate control servo motor of a Citroen C5. The original part has a design flaw: the shaft is very short and only enters a few millimeters into the flap it needs to rotate. Over time, the opening it enters wears down and rounds off, and the flap becomes stuck. The manufacturer has released a new design with a longer shaft:
http://www.citroenforos.com/1257918/8439544-climatizador-c5-i-arreglar-subida-y-bajada-de-la-temperatura-zona-del-conductor/?pag=2
By printing this part we get a shaft extender that solves the problem.
===== English ====
This is a quick fix for a problem with the Citroen C5 climate control servo. The original motor has a short shaft and it erodes the flap nut. After some years, the motor can't move the flap. There is a new version of the motor with a longer shaft.
http://www.aussiefrogs.com/forum/citro%EBn-forum/128346-c5-climate-control-out-kilter.html
Just print this part and you have the new version ;-)
