Dash replacement / auxiliary control panel
Dash replacement / auxiliary control panel design listed for 2001–2007 Nissan X-Trail. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Nissan
- Model
- X-Trail
- Year range
- 2001–2007
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

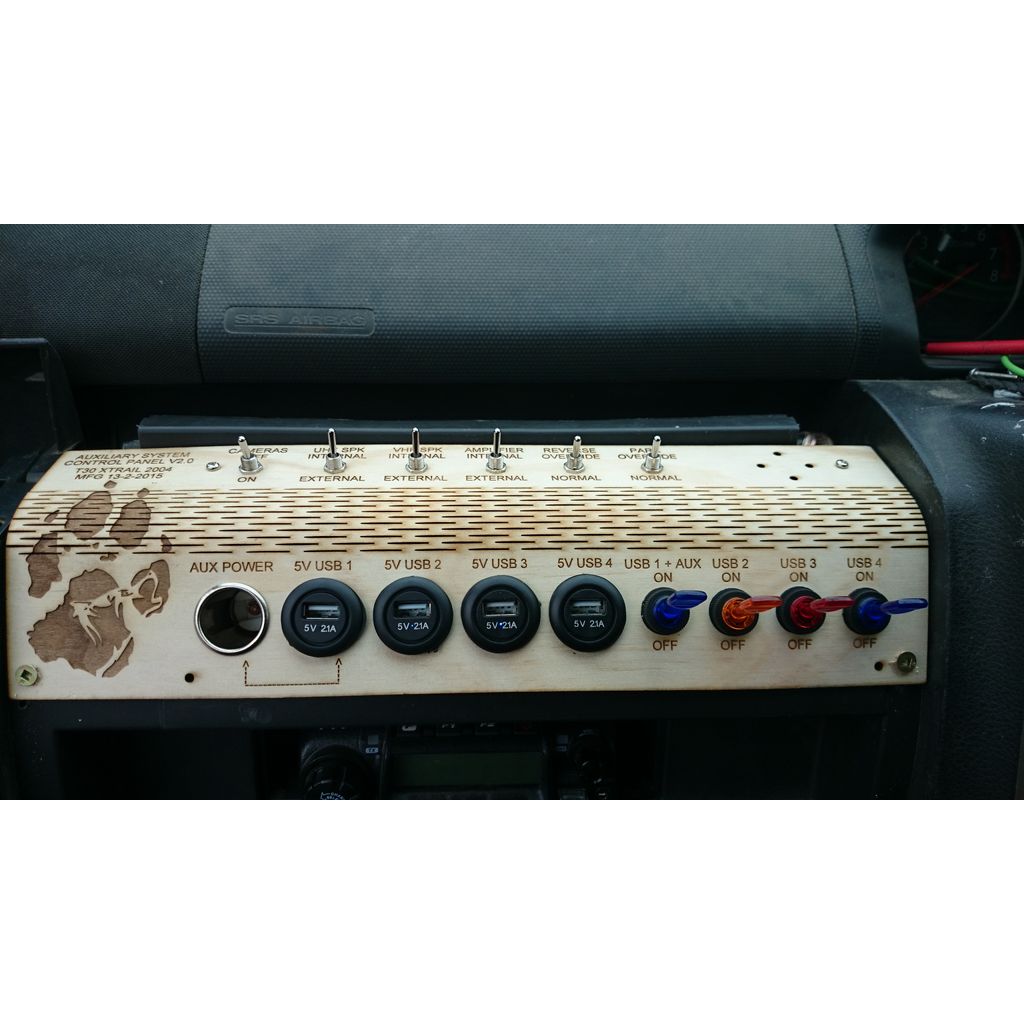

A while back, the upper glove box lid busted in my T30 X-Trail.
as I have alot of auxiliary wiring (something like 30m of it)
I needed an extra distribution panel.
The busted glove box seemed the best place for it.
I also have a Garmin Muvi GPS, and have made a 3D printable bracket to house that. (note you will need a little acetone to glue the ball in place after screwing it on.
All screw holes are intended for 3mm stainless nuts and bolts, or for 4mm square drive self tappers.
I'm sure there will be plenty of questions, please leave comments and ask questions, I'll answer wherever I can.
And remember - fuses matter!
Also included are DXF's for laser cutting and the original image I found on google images - to no idea who "hitewolf13" is, but credit to them for the graphic.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
