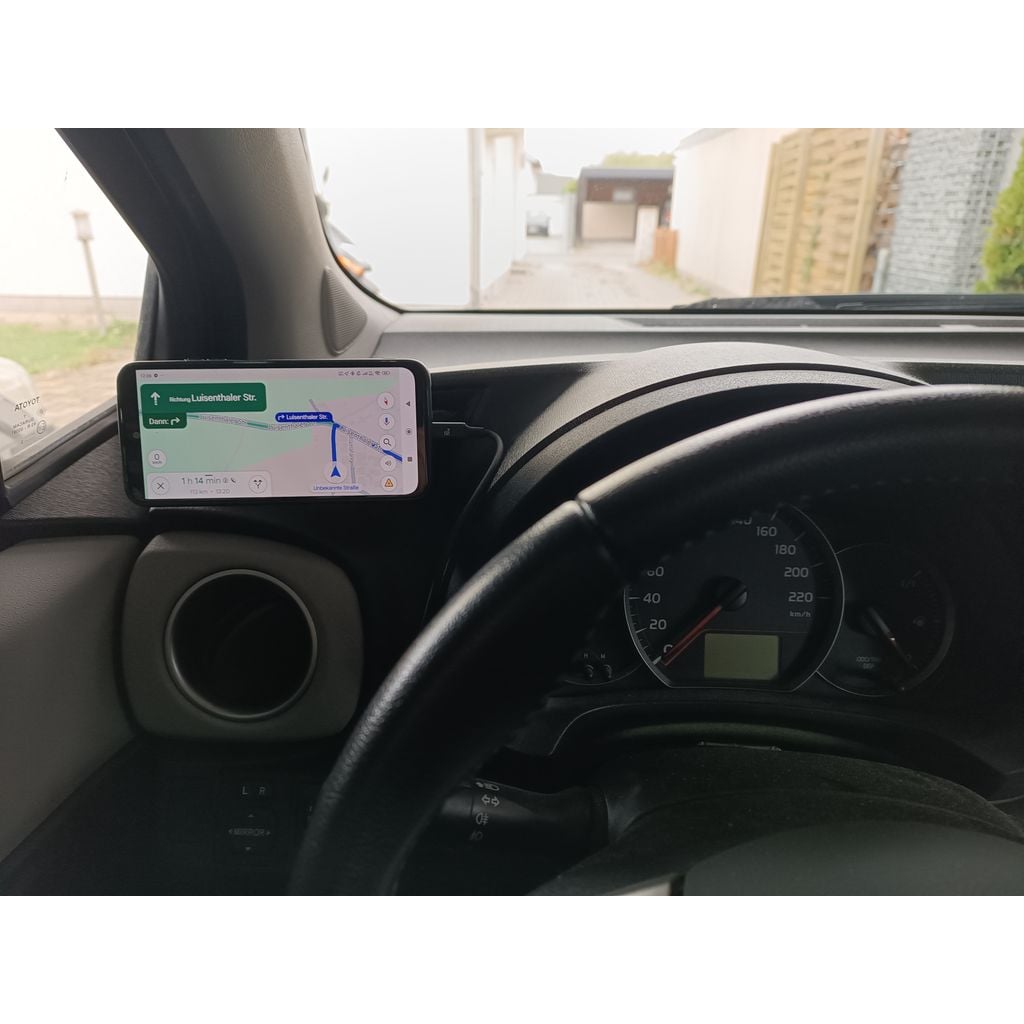

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Smartphone Holder
Smartphone Holder design listed for 1999 Toyota Yaris. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- Yaris
- Year range
- 1999
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
The tray must be pulled out with a little force. It is only clicked into place.
1. Place the template in the compartment and drill a hole ( hole can be plugged again when no longer needed).
2. Screw the magnetic smartphone holder (available from Amazon, for example; type see picture) into place using a long bit and the cover.
3. We recommend attaching foam tape as shown to prevent the insert from rattling, as there is still a little space between the part and the compartment.
4. Insert the holder into the compartment and tighten it from behind with a screw.
5. Click the compartment back into place... Done :)
It is advisable to embed the metal plate for the magnet a little further down, as this will provide more space for the ventilation grille!
The holder can of course also be modified for other purposes ;)
I printed it with PETG, PLA maybe not stable enough...
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
