truck hood ornament base
truck hood ornament base design listed for 1981–2010 Dodge Ram. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Dodge
- Model
- Ram
- Year range
- 1981–2010
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
https://www.thingiverse.com/thing:2982348
Please note:
I would NOT use PLA. It'll warp, shrink and won't last long in use.
I drew this from an image on the internet. While it works very well on my truck it most certainly not a copy of the Mopar part. There are at least five different ornament bases. This is only ONE possibility that fits the Bcjams head.
So what I did was made the model for a flat head M8 screw to work with the printed threads in Bcjams' head. A 5/16-18 thread is very close to M8 and works equally as well in plastic. I actually used a hardware store 5/16-18 hex head screw.
Now for mounting:

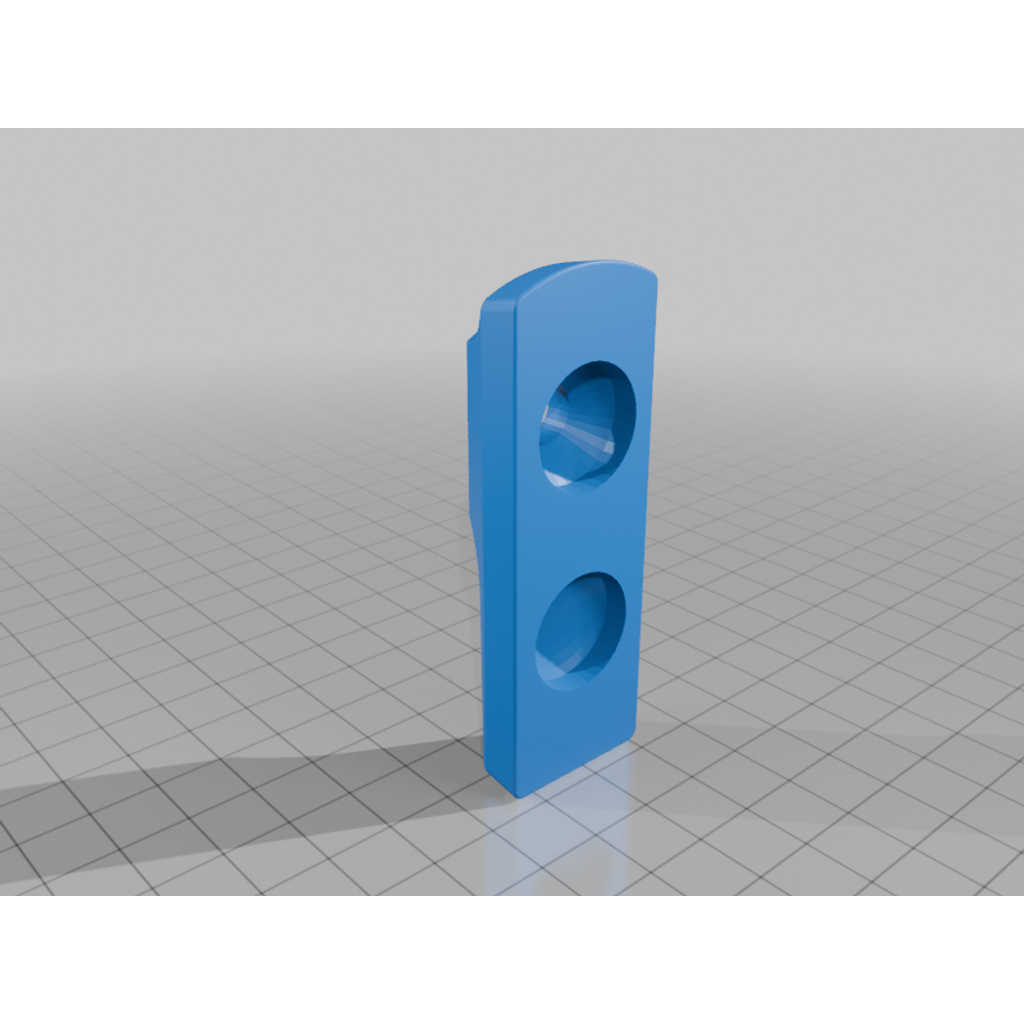

I did not want to drill holes or emblem tape to my hood (though emblem tape is the way to go) so this base accepts two round neodymium magnets maximum of 18mm diameter and 4mm thick. You RTV the magnets in place, then glue thin silicone sheet, rubber sheet, gasket material if it's soft enough, duct tape, or I used electrical tape to the bottom of the base. The tape is a soft surface to not mar your paint, the magnets clamp it to your hood.
Works ok. I suppose at 120mph it'll come off, but otherwise seems to be ok. Let me know if y'all have another idea.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
