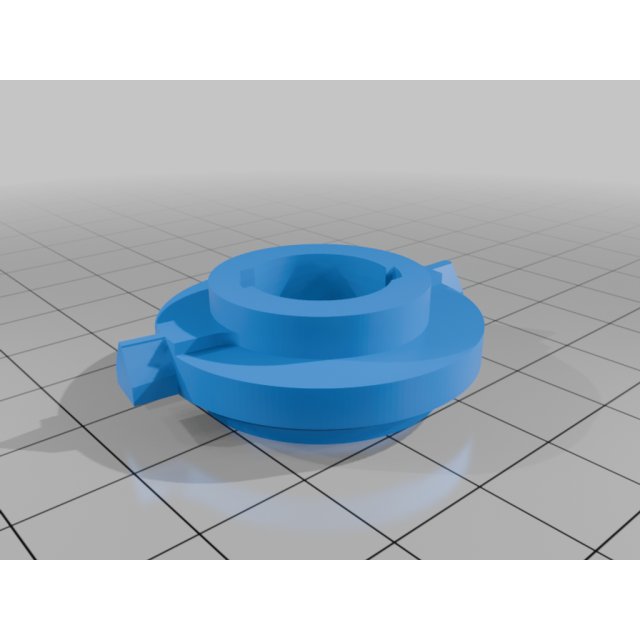

H7 LED headlight adapter
H7 LED headlight adapter design listed for 2000–2005 Volkswagen Passat. Listed category: lighting. Verify dimensions, fitment and material suitability before printing.
- Make
- Volkswagen
- Model
- Passat
- Year range
- 2000–2005
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
The file is for the left site and can just be mirrored for the right headlight. But will also fit without mirroring it.
Just the notches for securing it are a bit to high, cause i didn't want to risk them being to loose and getting a shaky bulb.
I printed them at 100% infill and from ABS GF just to be sure. The LED gets really hot even with the cooling fan.
If needed i can provide the source files as step or ipt.
Osram Nightbreaker H7 Smart LED Adapter for Passat B5.5 Headlights E1 1186/1187
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
