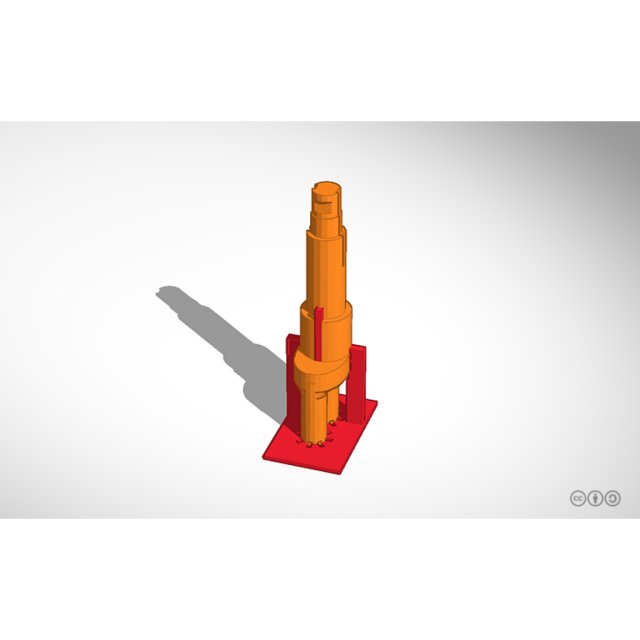

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Heater Control Knob Shaft
Heater Control Knob Shaft design listed for 2004–2006 Mitsubishi Lancer. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mitsubishi
- Model
- Lancer
- Year range
- 2004–2006
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
This part commonly breaks due to a design flaw that makes it difficult to turn.
A recall supposedly fixes the problem... but it does not.
This part is placed vertically because the shaft walls would not print well, but this creates a shear effect along the layers. If your printer can do it, I recommend placing it horizontal to remove the shear effect.
This was made with tinkercad, https://tinkercad.com/things/2IbqGGgu56P
Edit: It turns out Ebay is now selling these for $25. When this first broke for me, I could only order the whole unit for $400, hence the necessity of the work.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
