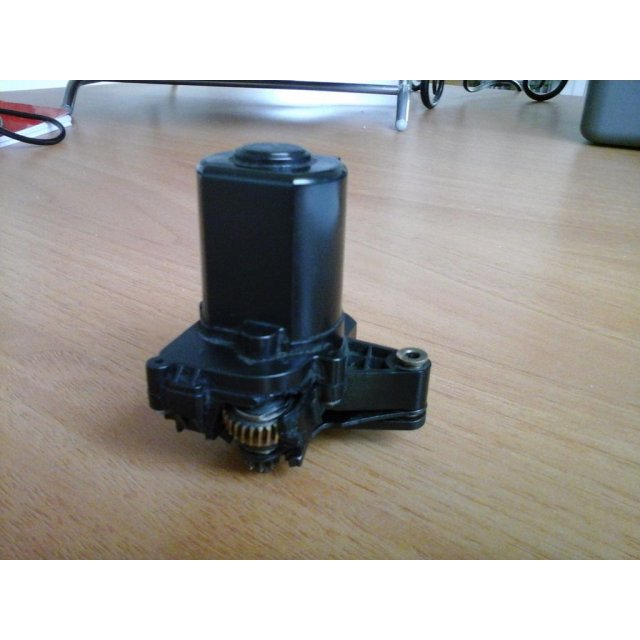

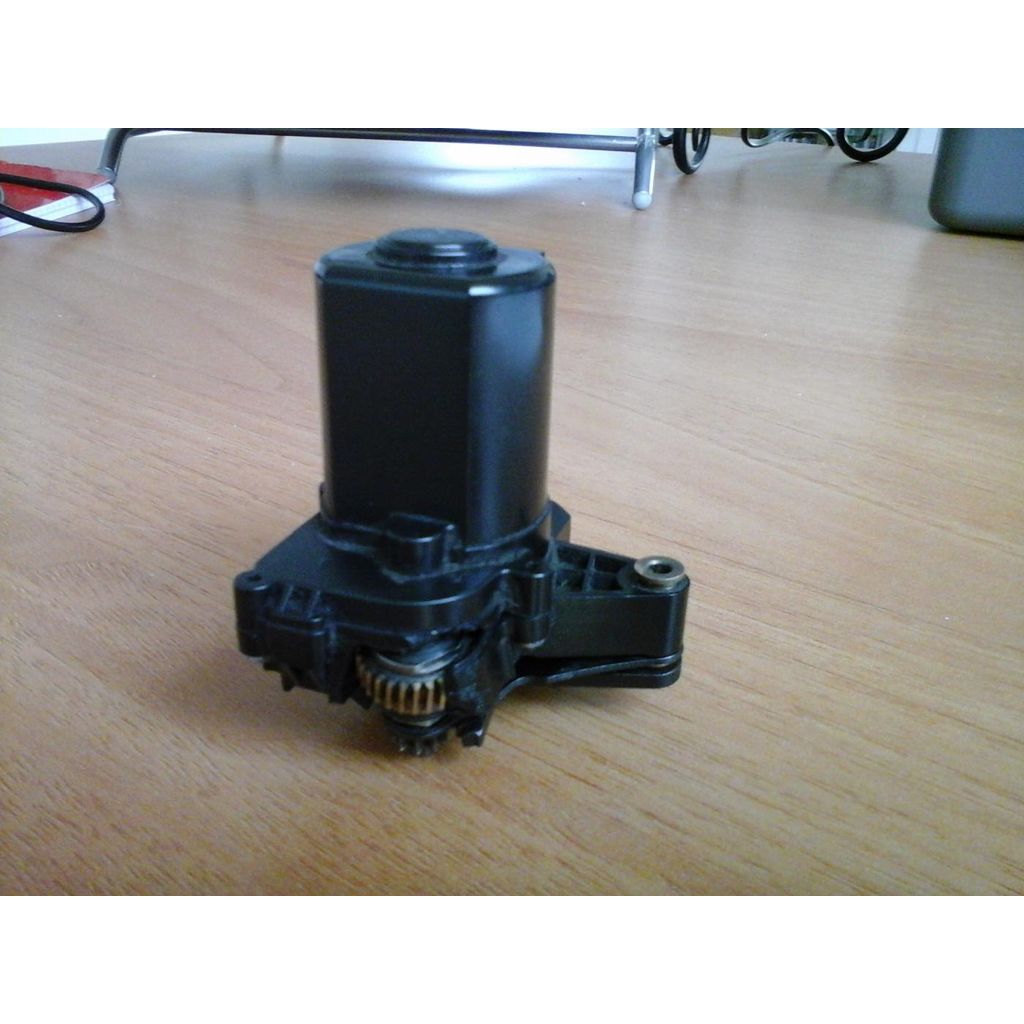

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
power folding side mirror gearbox cover
power folding side mirror gearbox cover design listed for 2005–2011 Mercedes-Benz B-Class. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mercedes-Benz
- Model
- B-Class
- Year range
- 2005–2011
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
je conseille d'imprimer cette piece en ABS. Le PLA peut aussi convenir si la pièce est recuite après impression pour une meilleure tenue mécanique et meilleure resistance à la chaleur (il fait chaud en été dans le retroviseur !)
- Retournez la pièce à 180° selon X ou Y pour l'imprimer.
- Utilisez des supports.
- Après impresssion, repercer tous les trous au juste diamètre.
Le fichier correspond à le pièce coté conducteur. Le coté passager s'obtient par simple symétrie de la pièce dans votre trancheur.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
