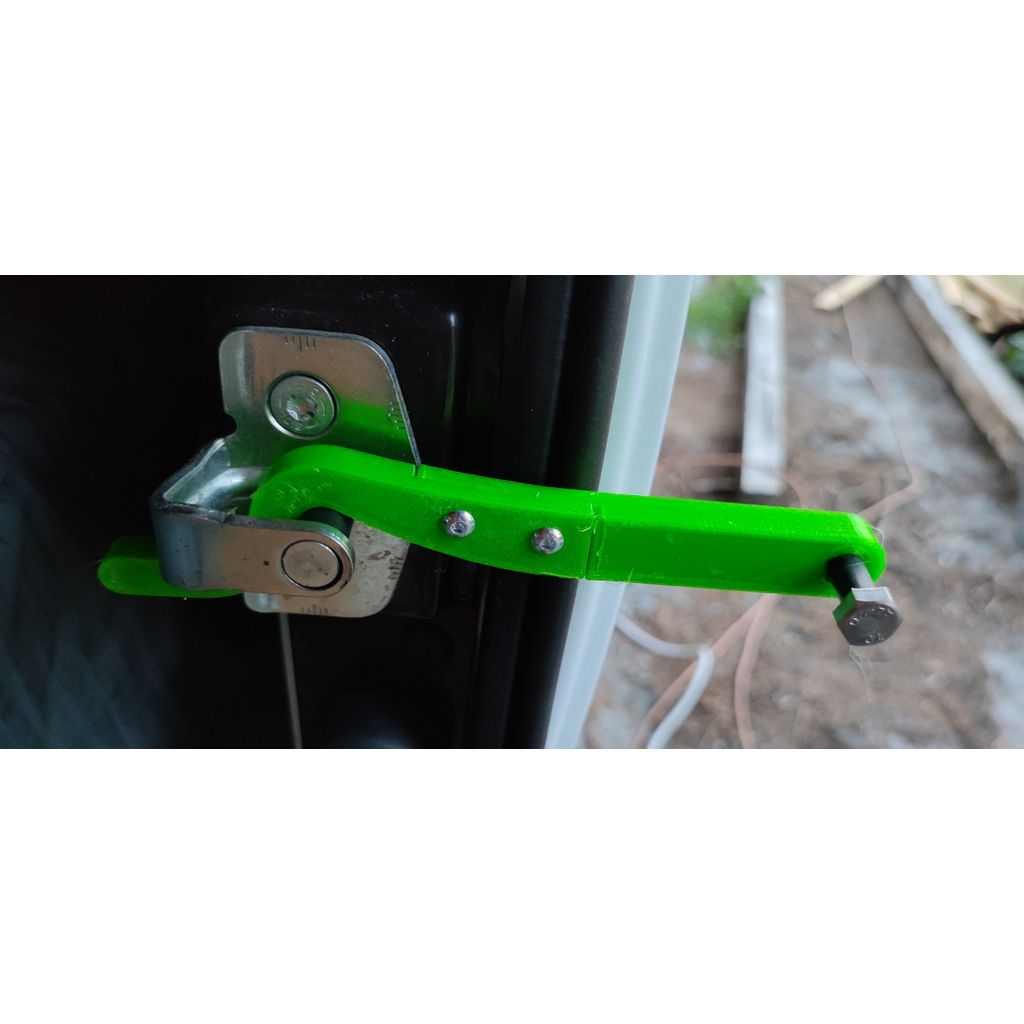

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Door Lock Latch
Door Lock Latch design listed for 2014 Renault Trafic. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Renault
- Model
- Trafic
- Year range
- 2014
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Door Lock Latch for Renault Trafic 3
Several versions:
- Version _1 and _2 in 2 parts to be assembled with M4 screws which will self-tapping the plastic.
You must use an H M8 screw to be screwed directly to lock in the latch
- MonoBlock version
You must use an H M8 screw to be screwed directly to lock in the latch
- MonoBlock 2 version
CAD model in SolidWorks format to ajust if you want.
This version allows good ventilation. However, it does not allow locking with security because the unlocking is accessible. If you want a non-unlockable version, you have to decrease the length.
--FR--
Entrebâilleur de porte pour Renault Trafic 3
Plusieurs versions :
- Version _1 et _2 en 2 parties à assembler avec des vis M4 qui vont auto-tarauder le plastique.
Il faut utiliser une vis H M8 à visser directement pour venir se bloquer dans le loquet
- Version MonoBloc
Il faut utiliser une vis H M8 à visser directement pour venir se bloquer dans le loquet
- Version MonoBloc 2
Modèle CAO au format SolidWorks à ajuster si vous le souhaitez.
Cette version permet une bonne aération. Cependant, elle ne permet pas de vérrouiller avec sécurité car le déverrouillage est accessible. Si vous voulez une version non deverrouillable, il faut diminuer la longueur.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $21.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $21.50 | General-purpose candidate; heat and creep need review. |
| ASA | $23.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $22.50 | Enclosed printing; review application and dimensions. |
| TPU | $26.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $26.00 | Moisture, tolerances and application require review. |
| PA-CF | $28.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
