Turn Signal Indicator Retaining Clip Repair
Turn Signal Indicator Retaining Clip Repair design listed for 1999–2023 Fiat, Abarth, Lancia, Peugeot, Citroen Multiple Models. Listed category: lighting. Verify dimensions, fitment and material suitability before printing.
- Make
- Fiat, Abarth, Lancia, Peugeot, Citroen
- Model
- Multiple Models
- Year range
- 1999–2023
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

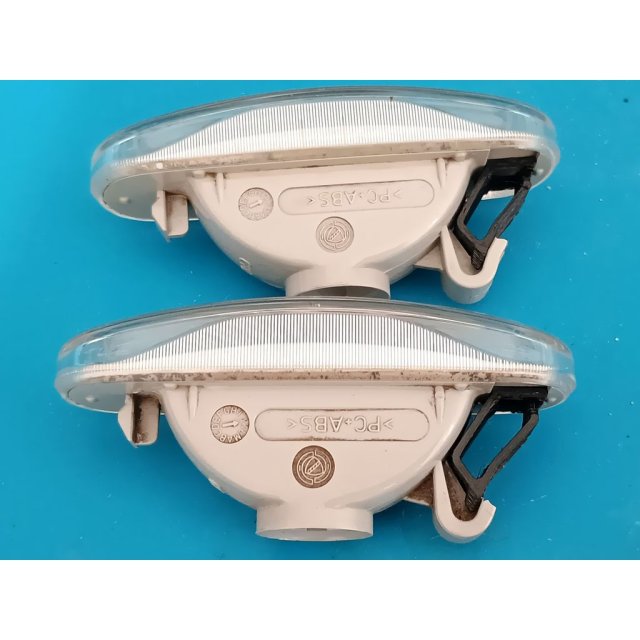

Since these direction indicators (51717793) tend to break the elastic arm, I made an elastic element (in ABS) with snap-in positioning, which allows to restore correct functioning.
English:
Since these direction indicators/turn signals (51717793) tend to break the elastic arm, I made an elastic element (in ABS) with snap-in positioning, which allows to restore correct functioning.
Artillery Hornet Firmware (290°C & Input shaping):
https://github.com/fanXbox/hornet-firmware/releases
Applicable to direction indicators/turn signals (arrows):
-Fiat ABARTH Punto (199) 2012.03-2018
-Fiat Doblo I Estate (119, 223) 2001.03-2019
-Fiat Doblo I Cargo (223) 2001.03-2010
-Fiat Fiorino III box/station wagon (225) 2007.11-2019
-Fiat Grande Punto Hatchback (199) 2005.10-2019
-Fiat Idea (350) 2003.12-2019
-Fiat Linea (323, 110) 2007.06-2019
-Fiat Multipla (186) 1999.04-2010
-Fiat Panda II III Hatchback (169, 312, 319) 2003.09-2019
-Fiat Panda Van (169, 312, 519) 2004.03-2023
-Fiat Punto III Hatchback (199) 2012.03-2018
-Fiat Punto Evo Hatchback (199) 2008.07-2012
-Fiat Qubo (225) 2008.02-2019
-Fiat Stilo Hatchback (192) 2001.10-2006.11
-Fiat Stilo Multi Wagon (192) Diesel 2003.01-2008.08
-Peugeot Bipper box van 2008.02-2019
-Peugeot Bipper Tepee 2008.04-2019
-Citroen Nemo Panel Van 2008.02-2019
-Citroen Nemo Estate Van 2009.04-2019
-Lancia Musa (350) 2004.10-2012.09
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
