PCV Cover Bolt Plugs
PCV Cover Bolt Plugs design listed for 2006–2013 Mini Cooper S. Listed category: engine. Verify dimensions, fitment and material suitability before printing.
- Make
- Mini
- Model
- Cooper S
- Year range
- 2006–2013
- Submodel
- Cooper S / JCW
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description
You know why you need them already :)

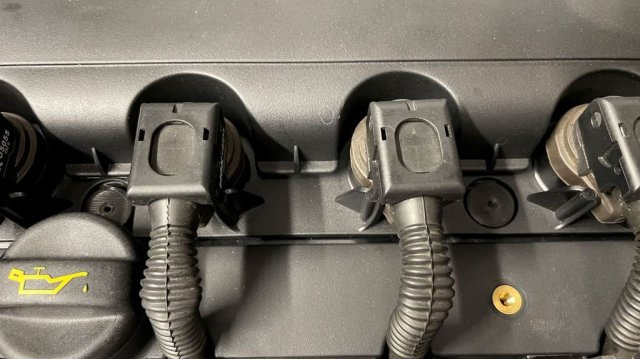

There are 2 bolts in the middle of the head cover of N14 engine.
No plugs or caps are available to cover the holes and it just looks empty there, like something is missing.
I had to make 2 different caps. The one on the left is 22mm, the one on the right is 21.7mm.
Give it a try first with 21.7 to see whether it fits ok both sides without any gap and if needed proceed with the 22mm.
Standard printing settings. I used PLA and have been monitoring them for a week now. Everything seems fine, they are not melting or changing form.
If there is a need, you can always print them in ABS or PETG with the respective settings of your printer.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Cost examples only. This design is not offered for sale; permission or specialist application review is required.
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
