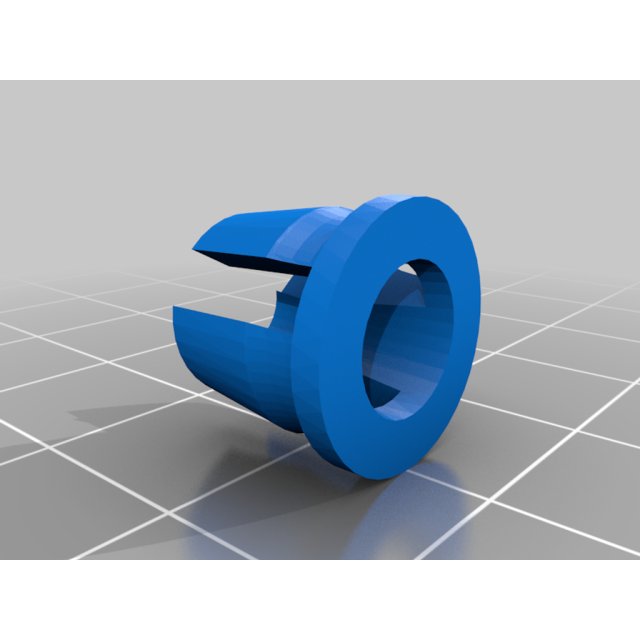

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Parking/Turn Lamp Grommet Clip
Parking/Turn Lamp Grommet Clip design listed for 2001 Ford Sport Trac. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- Sport Trac
- Year range
- 2001
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Essentially, this is the part here: https://www.amazon.com/Ford-Park-Signal-Grommets-Diameter/dp/B004E6A1XW
I needed two of these to fix my 2001 Sport Trac, and rather than pay for them and shipping, I designed them myself. Hopefully they are of use to someone else.
I printed these out at 1:1 scale, and they fit just fine. You may need to adjust the scale depending on your printer. Head diameter (the flat face you should be printing parallel to the bed) is 13mm, if that helps.
I have only tested this on my 2001 Sport Trac, but it should work for most Ford vehicles. I am not a car person, so please let me know if I am wrong! From the part information page:
"Replaces Ford: N811169S,W705550-S300 F250 - F550 Trucks 1999 -; Toyota: 90075-10801,90189-06111"
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
