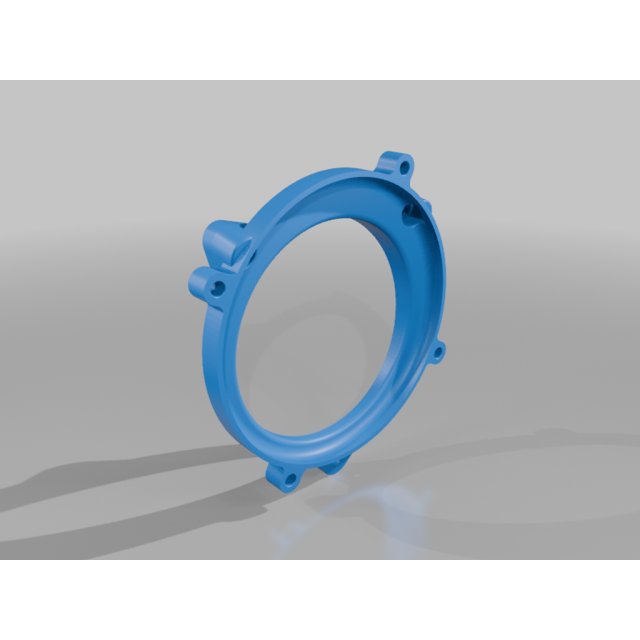

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Front Speaker Adapter Bracket
Front Speaker Adapter Bracket design listed for 1994–2001 Audi A4. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Audi
- Model
- A4
- Year range
- 1994–2001
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
The factory speakers are mirrored from each other, therefore you will need to "mirror" one of your prints so you have both a "left" and "right" bracket.
#### Bill of Materials (each)
- 4x M3 Threaded Insert (EX: Ruth RX-M3x5.7)
- 4x M3 Button Head Screws
- 3x OEM mounting screws
- 5.25" / 130mm speaker (EX: Hertz K 130 Uno Series 5-1/4" component speakers)
#### Printing Recommendations
- Remember to mirror one of the brackets
- ABS, ASA or a similar temperature resistant filament for bracket
- Use TPU or similar flexible filament for seal (fits in bracket groove)
- Designed to be printed with "zero distance" supports in an appropriate removable material such as HIPS
- Strength Recommendations:
- Wall Loops: 5
- Infill: 30% Cubic
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
