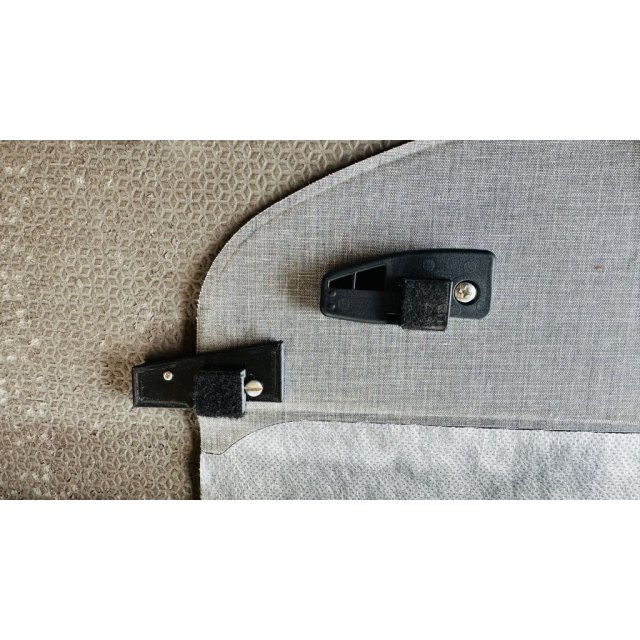

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Cargo Cover Tonneau Clip
Cargo Cover Tonneau Clip design listed for 2018–2025 Mitsubishi Eclipse Cross. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mitsubishi
- Model
- Eclipse Cross
- Year range
- 2018–2025
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
This is a replacement plastic clip/retainer for the cargo cover (trunk/luggage tonneau cover) on the Mitsubishi Eclipse Cross (2018–2025).
It’s designed to hold the edge of the cargo cover in place on the vehicle’s side/support point, helping eliminate looseness, rattles, and vibration—just like the original part shown in the photos.
✅ Vehicle fitment: Mitsubishi Eclipse Cross 2018–2025 (please compare with your OEM part before printing)
✅ Purpose: secure/anchor the cargo cover (tonneau) in the trunk area
✅ Use case: replaces a broken/cracked/missing OEM plastic clip
Installation
Remove the damaged/missing clip (if still present).
Place the printed part in the same position as the OEM clip.
Fasten it the same way as the original (screw/clip-in, depending on your cargo cover).
Test fit and adjust if needed (light sanding on contact surfaces usually solves tight fits).
Print recommendations
Material: PETG (recommended) or ABS/ASA (better for heat). PLA can work but may deform in hot cars.
Infill: 40–70% (higher if you want it extra rigid)
Perimeters/Walls: 4+
Layer height: 0.2 mm
Orientation: print so the “hook/clip” area has strong layer support (avoid orientations that make the clip rely on layer adhesion alone).
Post-processing: light sanding for a perfect fit.
Notes
Modeled from an original part and measurements from my vehicle. Small variations may exist between trims/years/production batches.
If it’s too tight: sand slightly. If it’s too loose: try XY compensation in your slicer or reprint with thicker walls.
Disclaimer
This is an unofficial 3D-printed replacement part and is not affiliated with Mitsubishi. Use at your own risk.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
