Action Cam Mirror Mount
Action Cam Mirror Mount design listed for 2016 Mazda MX-5 Miata. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- MX-5 Miata
- Year range
- 2016
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

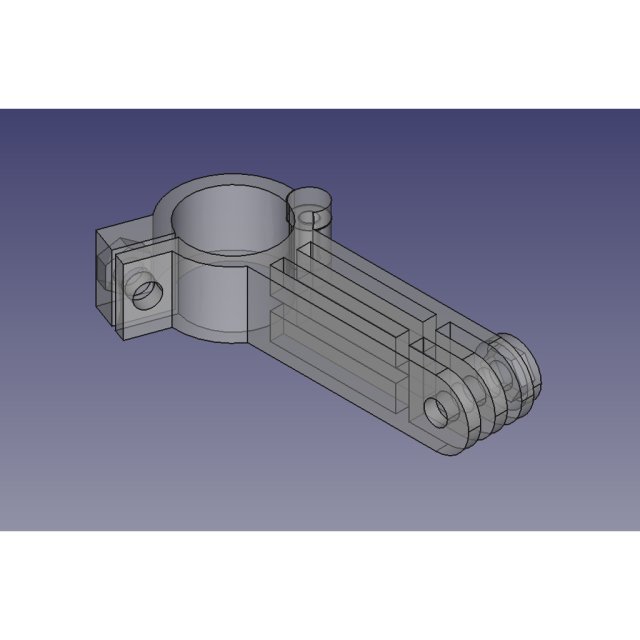

The diameter of the mirror holder of my Miata is 19.2mm. The clamp is designed according to this. I kept it minimal as possible to reduce weight but still keeping it stable.
I use it with my action cam (not GoPro) and it works great (see pictures)
I believe in free designs therefore I added also the FreeCad file. You are free to use it to e.g. adapt the length (which might be necessary if you want to use it with a GoPro). Go to Sketch and change the length. My design is based on the length, means Holes etc. should move accordingly.
I printed it using PETG and 0.2mm layer height.
You additionally need 2x M5 nuts and GoPro screws for fixind the clamp and camera.
Have fun and enjoy it.
20241103: increased hole diameter for hinge for print-in-place version. Should now be printable more easily; added version with detachable clamp.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
