Instrument Cluster Rings
Instrument Cluster Rings design listed for 1997–2002 Mazda 626. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- 626
- Year range
- 1997–2002
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
v2 available! https://www.thingiverse.com/thing:5212514

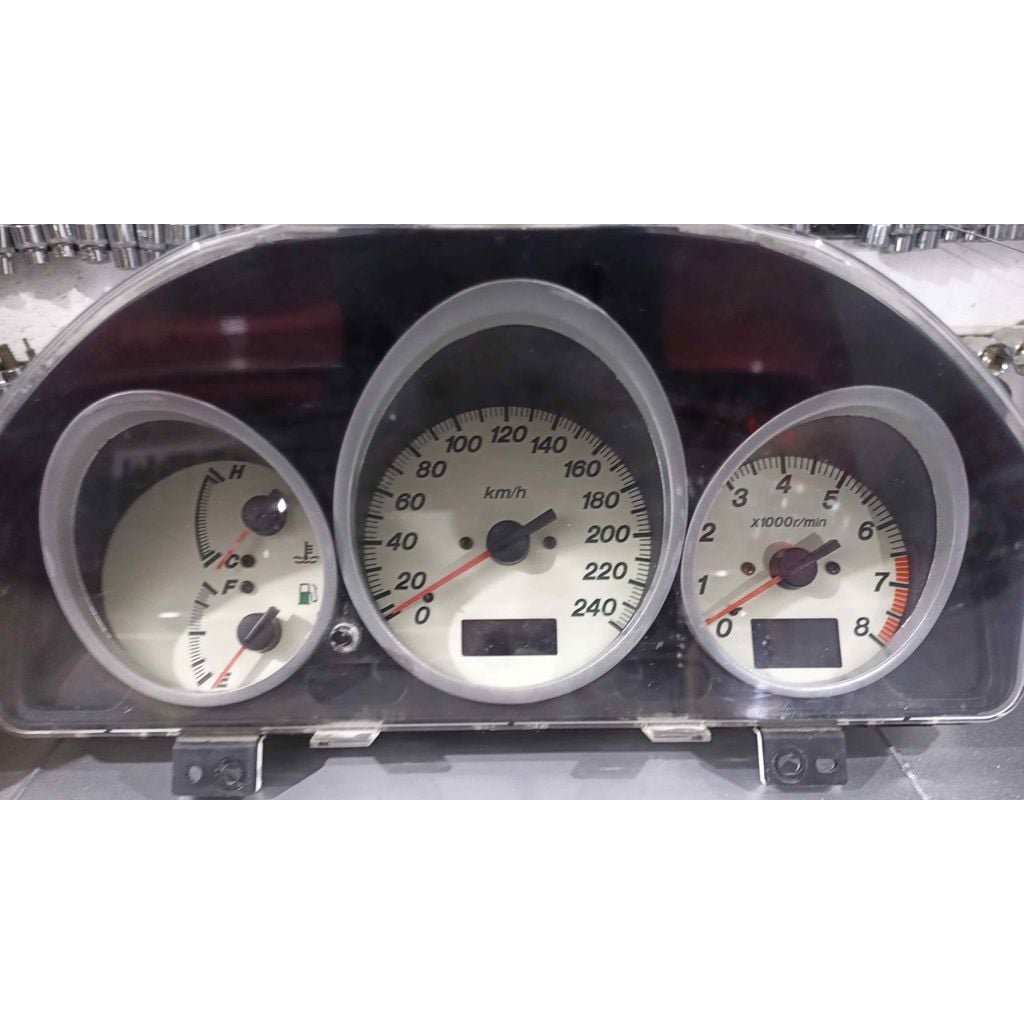

Rings for instrument cluster/speedometer of late 90s/early 2000s Mazda models. Made specifically for 626 GF (facelift), but should also fit 323 BJ, Premacy CP and Demio DW (see attached screenshot from Mazda EPC when searching for the plastic B25F-55-447 and glass C100-55-446).
Two versions are available - one without a painting guidance, and one with. Usage of that line, along with painting and installation, can be seen here - https://youtu.be/mYwwrTDiquY
Accurate sizes can be found in the attached PDF files.
Big thank you to Yanko who helped with the 3D modeling.
Source description, under the recorded CC-BY-4.0 license.
