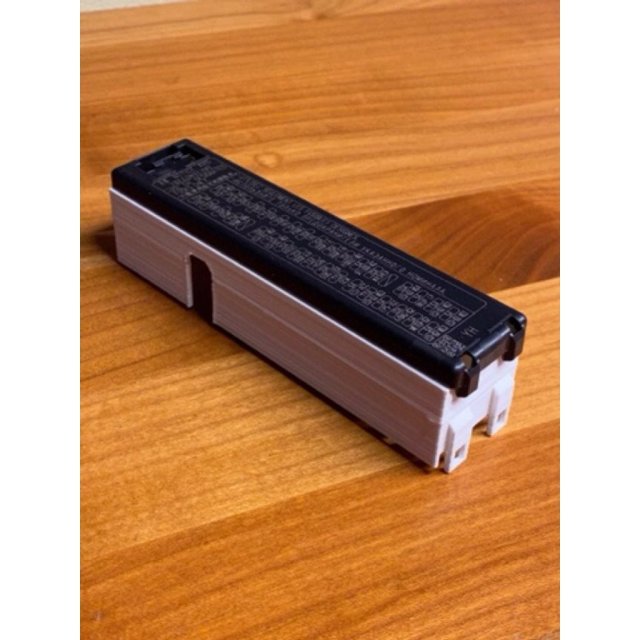

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Fuse Box Cover Adapter
Fuse Box Cover Adapter design listed for 2019 Toyota RAV4. Listed category: electrical. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- RAV4
- Year range
- 2019
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
What was the problem? When (or if) you own a new Toyota RAV4 (2019 onwards) you may find the need for some electricity somewhere, in my case I needed a connection for a glove box light. Now there are wire tap connectors around that simply plug in to the fuse box, either in an empty slot or as a shared slot with an existing fuse. Unfortunately these connectors add to the height of the fuses so the original cover (which at the same time is the indicator for the fuse allocation) does no longer fit.
In comes my thing - an adapter to go between the fuse carrier and the cover, enabling to use a wire tap connector and cleaning up everything just nicely afterwards.
The design is two-part in order to print without supports, glue it together with some superglue (strength is not an issue, there is no stress whatsoever on this part).
Update: If you want to print this in PETG which is notoriously difficult to glue I uploaded a revised model using clips instead (download ... noglue.zip)
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
