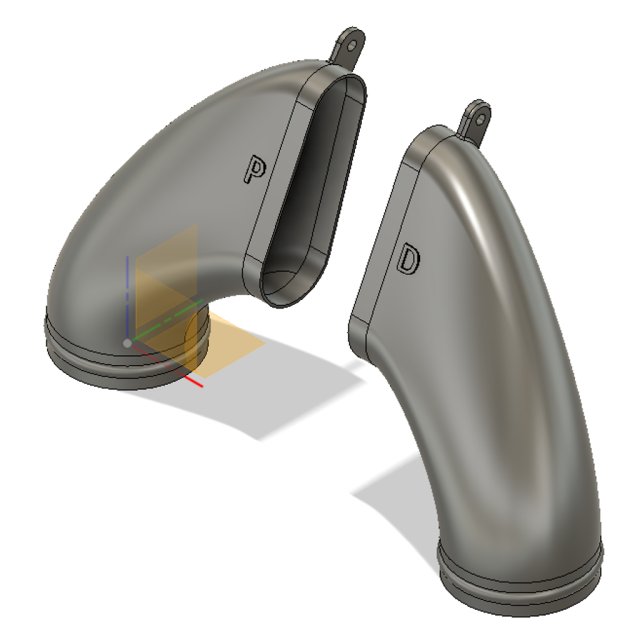

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Fresh Air Vent Ducting
Fresh Air Vent Ducting design listed for 1969–1978 Datsun 240Z. Listed category: engine. Verify dimensions, fitment and material suitability before printing.
- Make
- Datsun
- Model
- 240Z
- Year range
- 1969–1978
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description
I printed mine with 100% infill and support material just touching the build plate. I did not use internal supports. Feel free to experiment ot see what works best for your printer and material. Using either a brim or rafting is also probably a good idea. The footprint of the part alone is not very big.
I have played around with the tab trying to get it to lay flush so it would not flex and possibly crack. This might change from car to car. Be careful when tightening the screw. Using a small thin rubber washer between the plastic tab and the car might help with any misalignment. Maybe even just cut off the tabs and use a small metal angle bracket like the stock ducting uses.
Hope you like it.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
