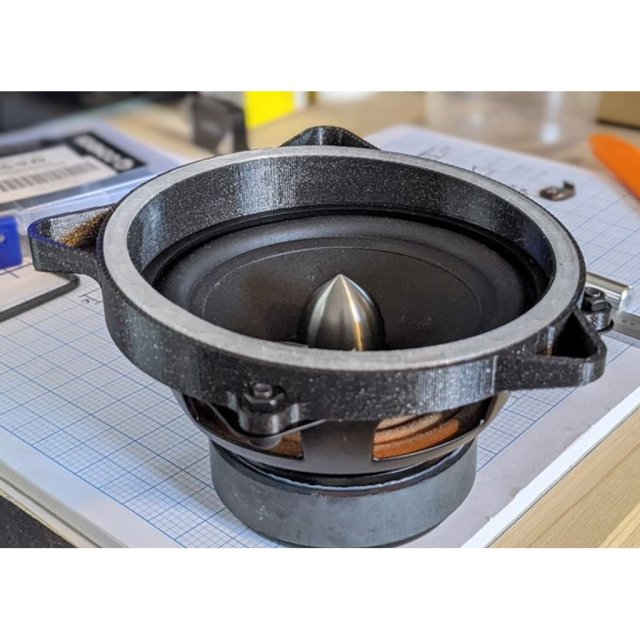

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Front Speaker Bracket Adapter
Front Speaker Bracket Adapter design listed for 1997–2002 Audi S4. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Audi
- Model
- S4
- Year range
- 1997–2002
- Submodel
- S4
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I do not know if this would fit a normal A4 or one without the Bose Speakers. I also do not know if there were any regional differences.
The stock speakers use a propriety mounting system which wont take any standard size speakers. The speakers this was designed for can be seen here:
https://www.blam-audio.com/en/100-rs/
The dimensions of the speaker fitment can be seen in the images.
The groove in the face which touches the door card is designed for the TPU insert to prevent rattles, this could probably also just be filled with silicone or resin.
I will probably be creating the much simpler rear door speaker brackets soon.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
