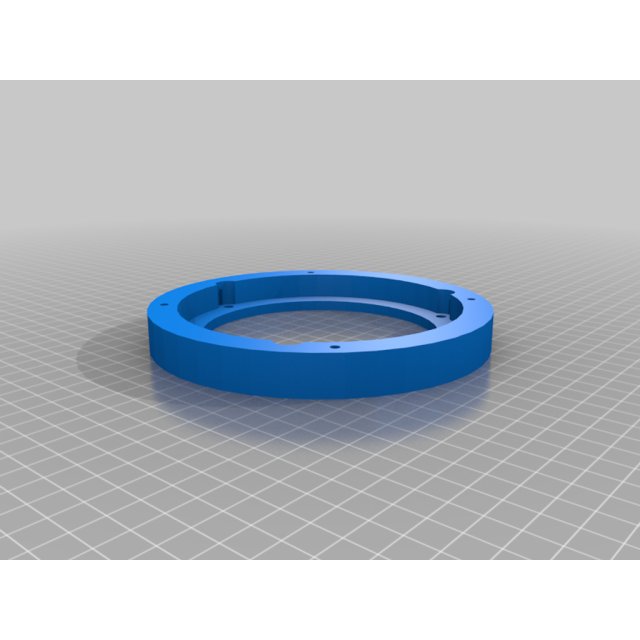

Front door speaker spacer
Front door speaker spacer design listed for 2019–2020 Suzuki Jimny. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Suzuki
- Model
- Jimny
- Year range
- 2019–2020
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
There are two files - Rev A file suits the passenger door, it does not have a cutout for the speaker terminals, but the speaker still fits.
Rev C has been rotated so that the Pioneer Speakers sit with the labels horizontal, this is a pedantic thing and you can't see them anyway with the door trim on. There is a recess for the speaker terminals in this one.
I recommend to use two Rev C designs and ignore the angle of the speaker.
I used weather strip type adhesive foam to mount to the door frame and 20mm strip foam to push against the door frame.
There are a few sites out there showing how the Suzuki OEM kit is fitted and just copy that. (BigJimny forum in the UK is one).
I used Pioneer TS-G1320F speakers (5.25 inch)
I used PLA and good so far in the Australian summer, if there is a problem with car temperatures in the future, I'll remake them in ABS.
