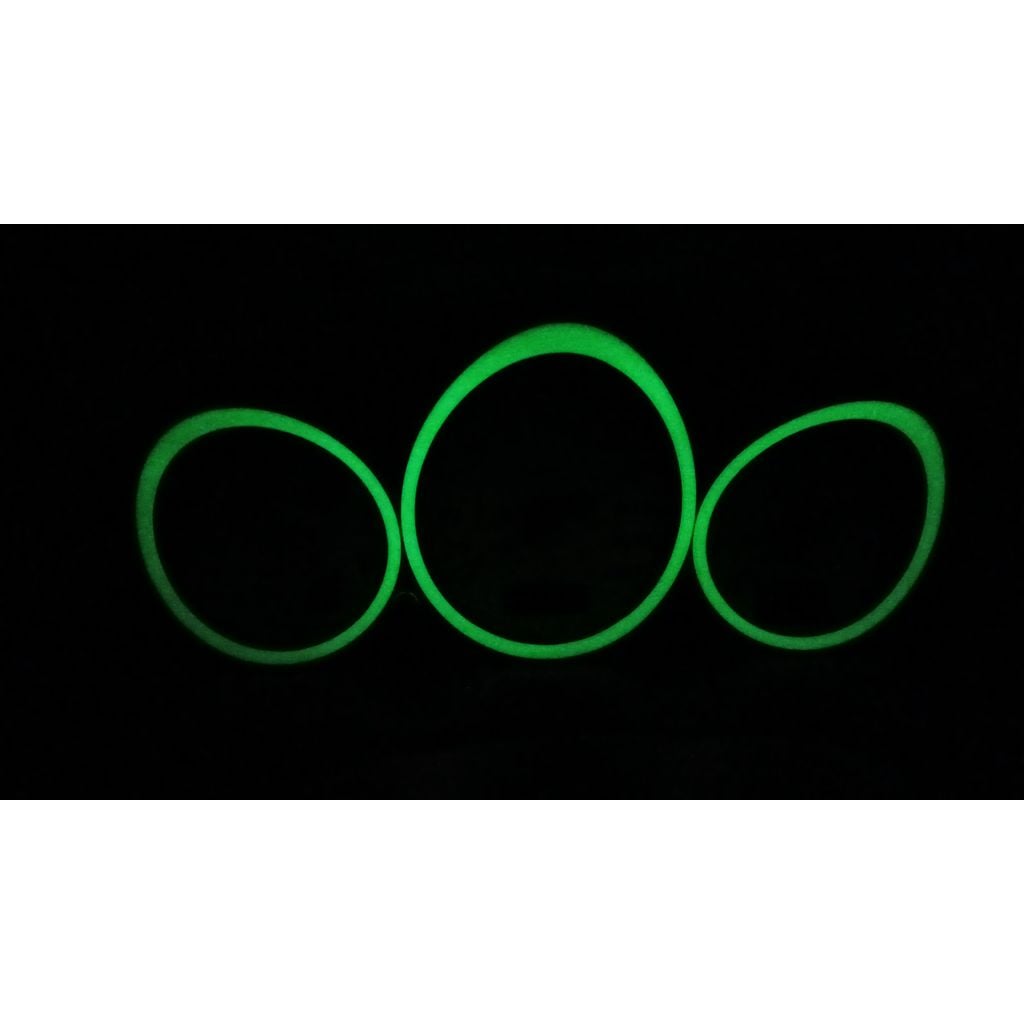

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Instrument Cluster Rings
Instrument Cluster Rings design listed for 1997–2002 Mazda 626. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- 626
- Year range
- 1997–2002
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
v1 can be found here: https://www.thingiverse.com/thing:4865441
Benefits compared to v1:
- Not touching the glass (so no stains left)
- (Hopefully) no warping
- Not much post-processing, just print and place
- Much easier to get 2 colored rings (I used Glow in the dark PLA for the top part)
Cons compared to v1:
- Needs gluing to the instrument cluster.
I used mounting tape instead of a glue and for now it works very good. Mounting tape can be removed without any residue left. The whole mounting procedure can be watched here: https://www.youtube.com/watch?v=XJC4GCp8a3c
I printed the bottom part with 10% Lightning infill in Cura, while the top part is 100% infill. Both use PLA, but the top one is Glow in the dark PLA.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
