Quarter Panel Side Moulding
Quarter Panel Side Moulding design listed for 1983–1987 Toyota Corolla AE86. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- Corolla AE86
- Year range
- 1983–1987
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

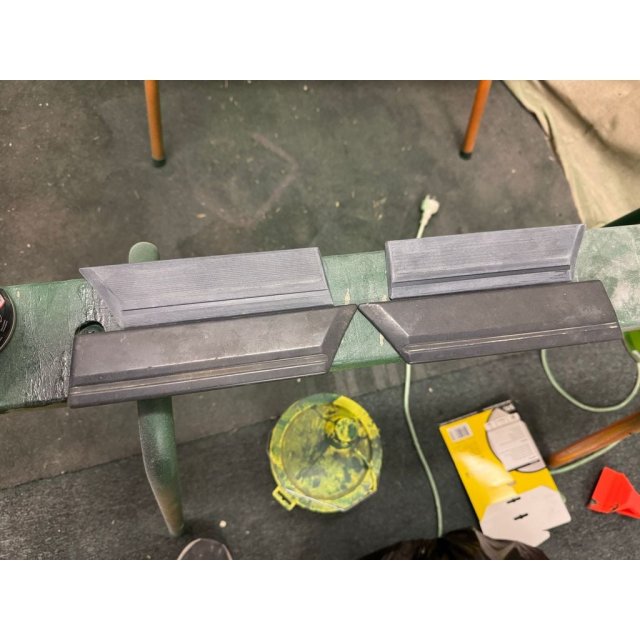

The cover picture is a pair of printed front side mouldings above a pair of factory rear mouldings.
If there is interest I will use the files to create the section that goes on the door as well once my car is back from paint.
I personally wasn't sure what material would work well for holding paint. The factory items can clearly be painted and are a bit flexible. I ended up going with ASA and made them solid so that I could sand the subtle gradients without being nervous about sanding down into the infill.
Again, car is at the paint shop so I don't know if that was a good idea on not just yet :S
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $57.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $59.00 | General-purpose candidate; heat and creep need review. |
| ASA | $69.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $66.00 | Enclosed printing; review application and dimensions. |
| TPU | $85.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $85.00 | Moisture, tolerances and application require review. |
| PA-CF | $99.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
