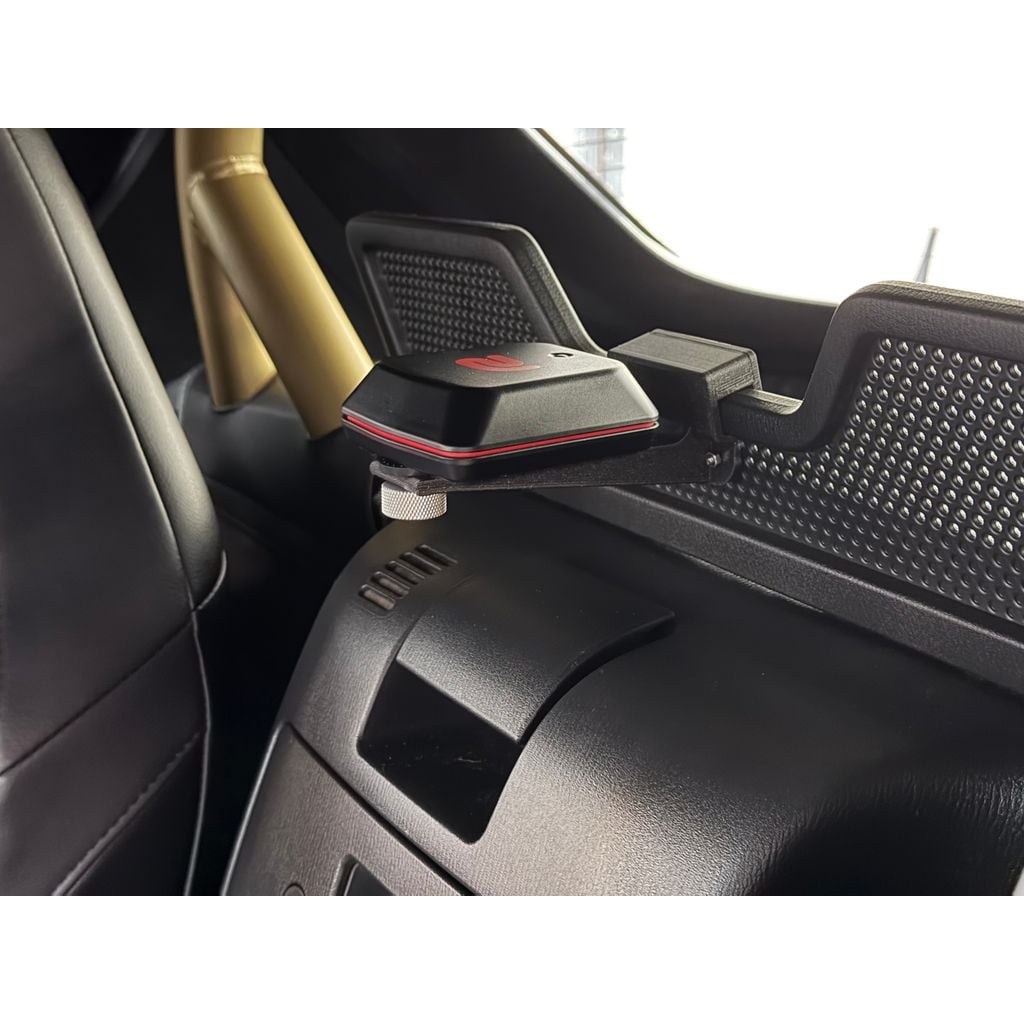

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
RaceBox Mini / Mini S Mount
RaceBox Mini / Mini S Mount design listed for 2016–2026 Mazda MX-5 Miata. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- MX-5 Miata
- Year range
- 2016–2026
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Mine is tilted 16 degrees forward so the model reflects that to keep the RaceBox level.
This is only the front mount, you will need the back mount part from the <a href="https://www.thingiverse.com/thing:7256915">parent project here</a>!
This design allows you to make use of the 1/4"-20 UNC thread on the Racebox Mini and Mini S so the unit can be mounted in the most central and out of the way position without needing to mess up your dash with adhesive mounts.
Meant to be used with a right angle USB-C for power.
Optional but i recommend using hook and loop strip for added rigidity.
The hole for the screw is slightly smaller than the threads so will need to thread through the plastic. This helps keep the screw captive when the Racebox is not mounted.
I used <a href="https://www.amazon.com/CAMVATE-Button-Nickel-Construction-Pieces/dp/B08VGB2WGM">these</a> for the mounting screw. Any screw 12-16 mm will do, but the unthreaded part should be 6mm or more so it can spin freely once threaded through.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
