Phone holder for cup holder
Phone holder for cup holder design listed for 2015 Mazda MX-5 Miata. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- MX-5 Miata
- Year range
- 2015
- Submodel
- Miata
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
It consists of several parts. I suggest glueing the arm, base and connector.
The back of the arm contains holes that can be used for zip ties to fasten the charging cable for the phone.

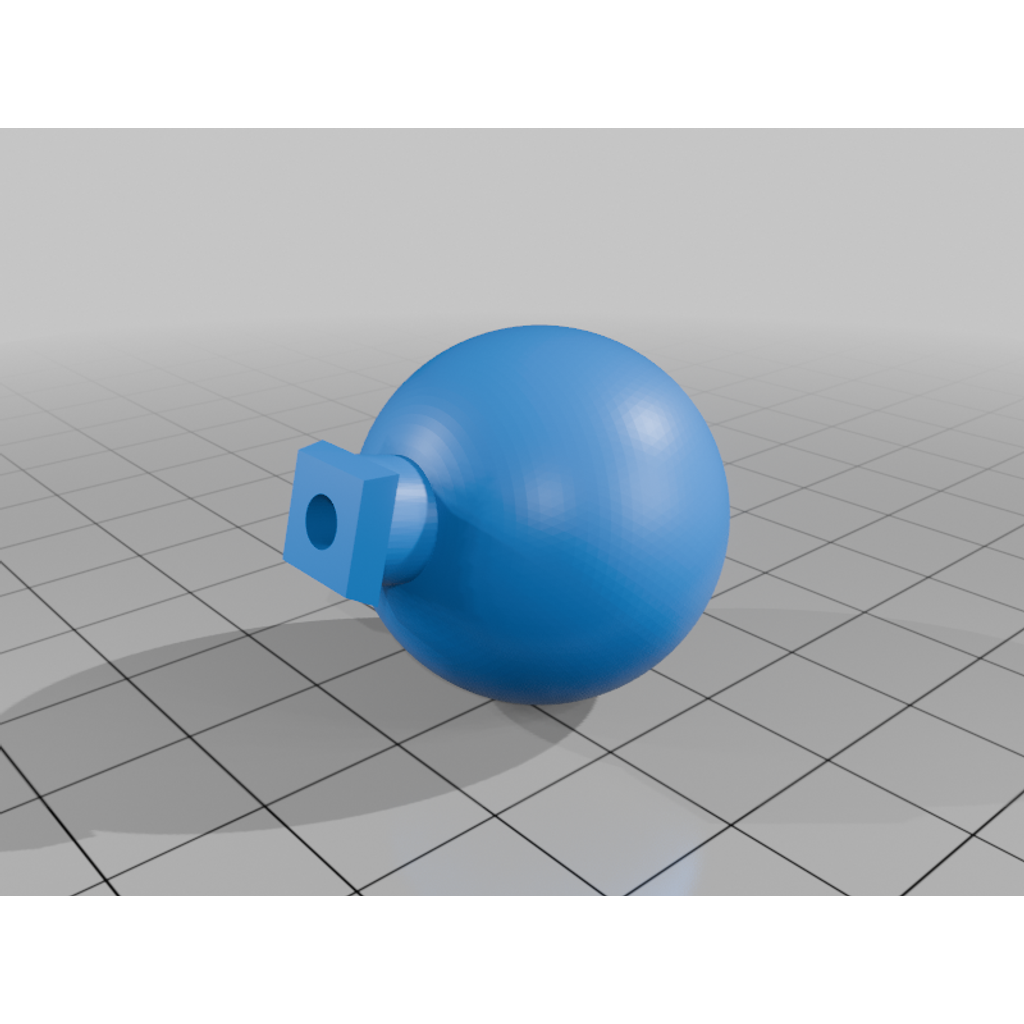

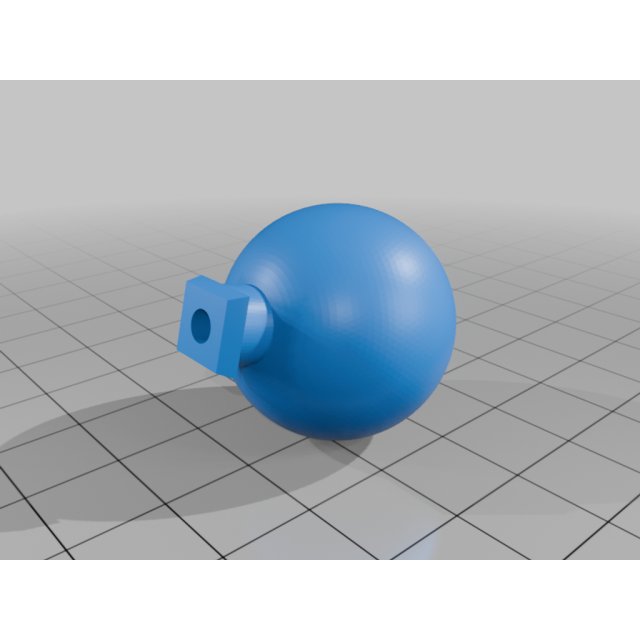

The ball head is available in two sized 17mm and 19mm which can be used to mount e.g. a universal holder or a charging plate (with ballhead mount).
The "RH" parts are for vehicles with the driver on the right side, "LH" on the left side (standard in europe). I could not test the "RH" parts but they are simply mirrored.
One image shows the suggested printing orientation for best stability. Another image shows it completely assembled.
For assembling you need additionally:
2x M3 nut
2x M3 screw (NOT countersunk), length 20mm
The arm should be printed with tree support.
I printed it using ASA filament
Enjoy it.
2024-08-06:
added 26mm ball
2024-01-29:
widened part "Arm" near the head to improve stability
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
