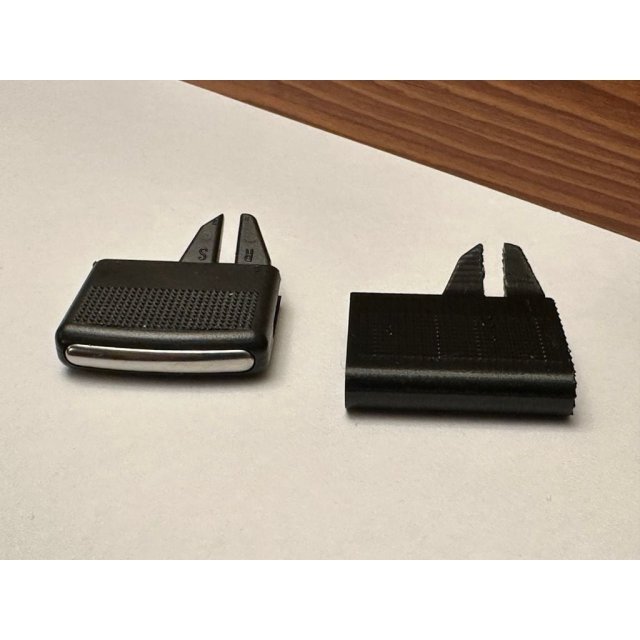

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Front Dashboard AC Vent Grill Clip Trim
Front Dashboard AC Vent Grill Clip Trim design listed for 2002–2008 Audi A4. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Audi
- Model
- A4
- Year range
- 2002–2008
- Submodel
- Avant / S4 / RS4 / 8E Quattro
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
This is a replacement part for the Front Dashboard AC Air Vent Grill Pick Clip Trim used in the Audi A4 B6/B7 / Avant / S4 / RS4 / 8E Quattro (2002–2008).
The full set includes 4 pieces:
Side Left (1)
Middle Left (2)
Middle Right (3)
Side Right (4)
This upload provides the Side Right (4) and Middle Right (3) versions.
To print the Side Left (1) and Middle Left (2), simply mirror the models in your slicer.
Printing notes:
Best results: Print vertically with supports enabled.
Recommended material: HT PETG (tested and works well).
Other suitable options: ABS, ASA, Polycarbonate, Nylon, CF-blends.
Important: Car interiors can reach 60–70 °C+. Standard PLA and normal PETG will warp or fail.
Additional info:
This is the first version. Feedback is welcome to help improve and release revised versions.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
