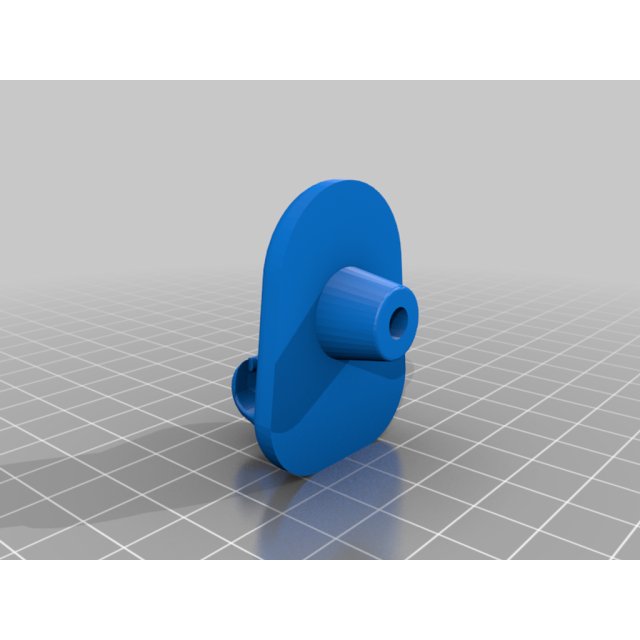

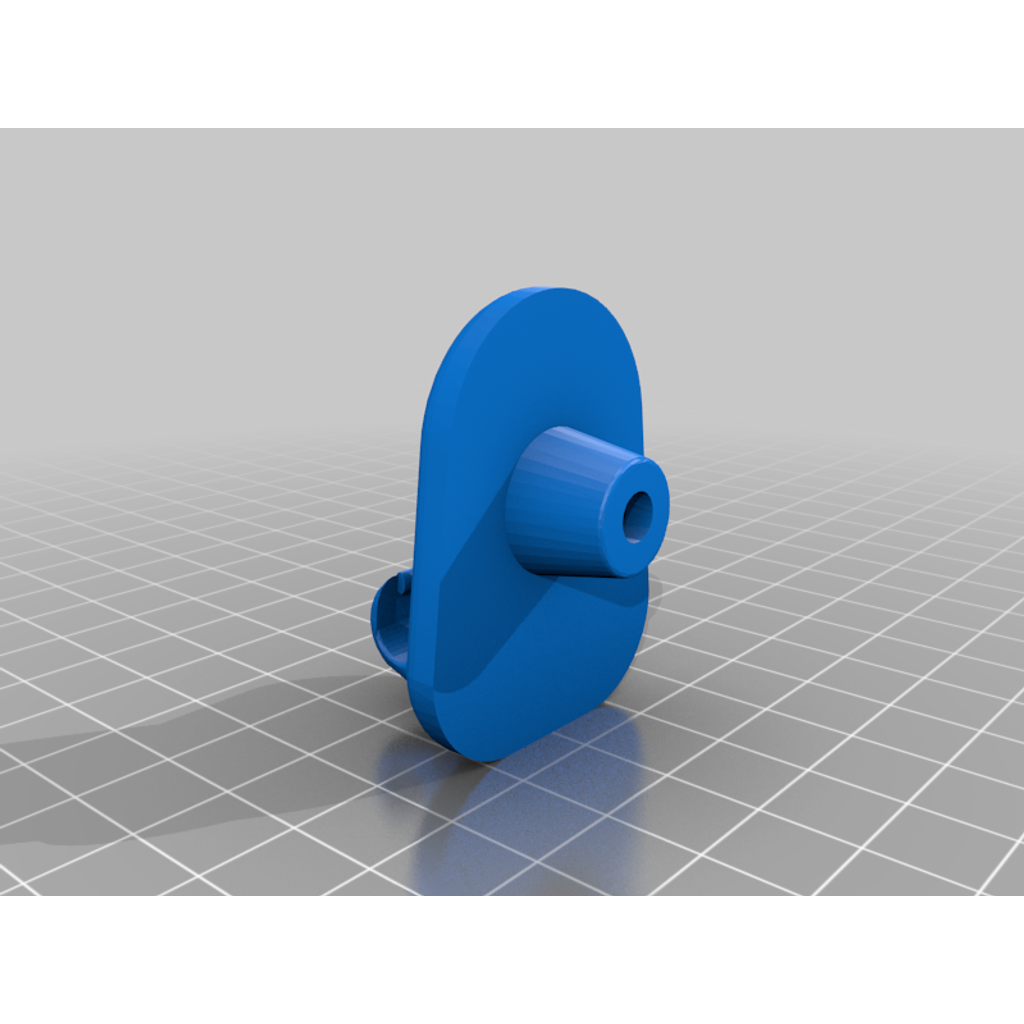

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Improved visor clip
Improved visor clip design listed for 2002–2012 Jeep Liberty. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Jeep
- Model
- Liberty
- Year range
- 2002–2012
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
by qtrx_fpv June 02, 2019 who created it.
Originally, visor slipped out of printed clip, not secured so I added a "bump" on top of "C" in order to make it click and secure in its place.
Be sure to print it on side with support. It may be bit ugly on one side and just sand it out. but the way layer lengthwise make it stronger and more accurate. I cleaned out support, sanded and replaced broken one with printed one.
I reversed the clip so it's a natural instinct for anyone to pull the visor rather than weird push forward and pull out (my son and I broke both when we tried to pull visor out of OEM clip). It give solid click when I push in or pull out. it's exactly like "factory" new feel
You can rotate and add support of your preference.to make it look nice all around.
I use PLA but you can use PETG (never tried that) because it can withstand internal heat better than PLA. (PETG is between PLA and ABS some sort)
Good Luck!
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
