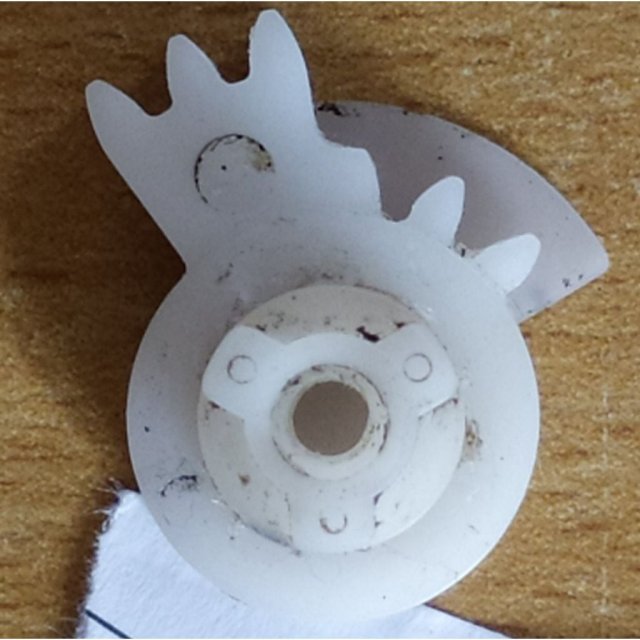

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Door Lock Gear
Door Lock Gear design listed for 2003 Volkswagen Passat. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Volkswagen
- Model
- Passat
- Year range
- 2003
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
So this part goes from the inside motor part, to the outside rotating steel part with the lever that goes to the inside electrical part.
Anyway, I printed it ABS for strength. Also, you need torsional strength;
Print the gear, called "tandwiel", normally.
Print the little lit that contains the other gear, called "onderplaat", normally.
Print the cylinder, called "buitenkant", 90 decrees rotated!
You see I added some teeth so the parts come together. Also add some glue.
Note it's important rotational wise how the two parts come together! See the original part for that.
Don't use a screw like the original part. That puts to much pressure on it and it breaks. I used a small bolt, washer and nut; M3, 2cm long.
Now it's for the left side of the car, can be frond or back. If you want it for the right side of the car, just mirror it (I think).
There is also the Blender file if you want to change the design.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
