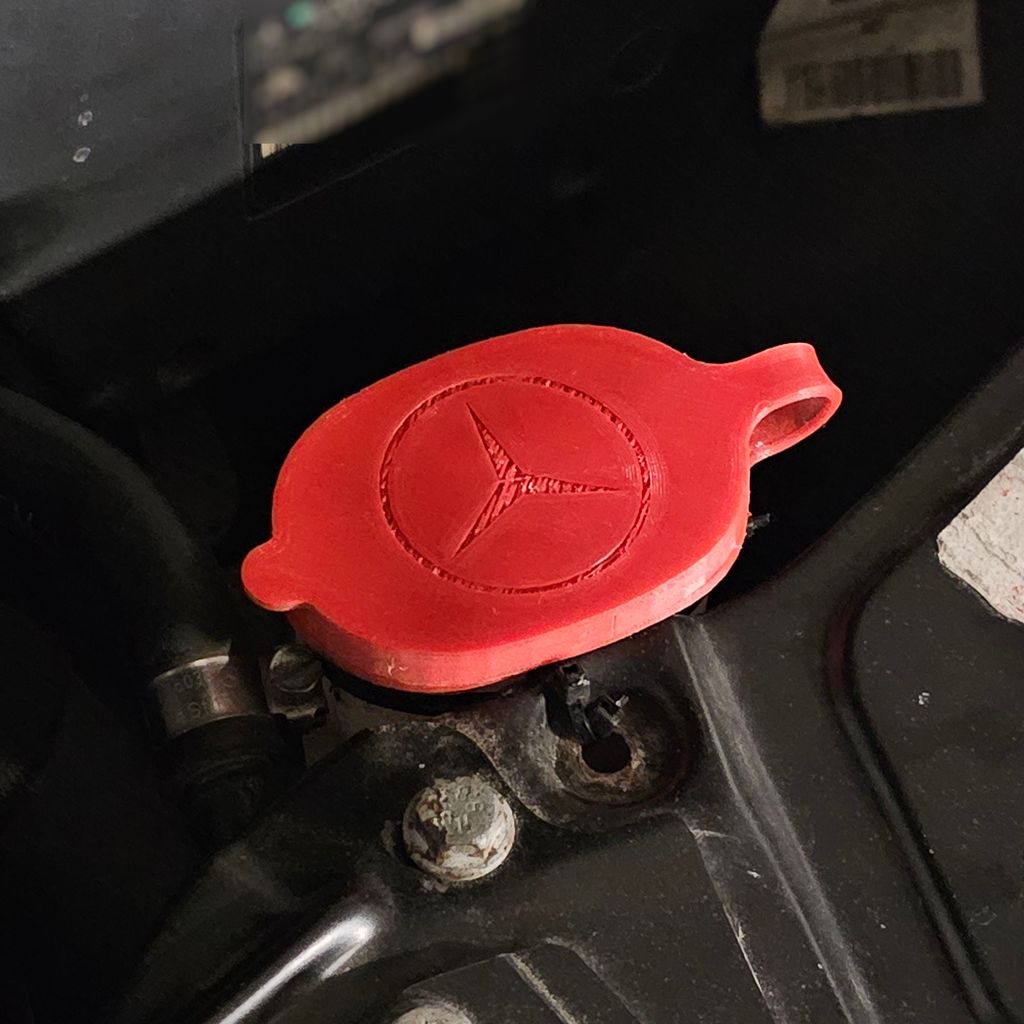

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Windshield Washer Fluid Reservoir Cap
Windshield Washer Fluid Reservoir Cap design listed for 2000–2007 Mercedes-Benz C-Class. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mercedes-Benz
- Model
- C-Class
- Year range
- 2000–2007
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
This is a durable, exact-fit replacement cap originally reverse-engineered for a Mercedes-Benz C200K W203.
Due to standardized OEM sizing, it is cross-compatible with a wide range of Mercedes chassis from the same era, including the W202, W204, W210, W211, and W209.
This model has been strictly real-world tested. The printed TPU cap has been in active use inside a daily-driven car for three years, withstanding extreme engine heat, winter conditions, and chemical exposure from washer fluids without any degradation or loss of flexibility.
Print & Design Notes:
Material: This part must be printed in TPU (flexible filament).
The flexibility is required to allow the cap to stretch slightly over the reservoir neck and snap into place, creating a reliable, watertight friction seal.
Standard configurations: a 0.4 mm nozzle and 0.2 mm layer height.
Orientation & Settings: Designed to be printed completely flat on the build plate. It requires no supports.
Color Recommendation: Printing in bright color TPU is recommended.
It creates a sharp visual contrast in the dark engine bay, clearly marking the maintenance point while perfectly complementing the existing (in my case red) color accents on the engine block.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
