Hood Rod Grommet
Hood Rod Grommet design listed for 1998–2002 Honda Accord. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Honda
- Model
- Accord
- Year range
- 1998–2002
- Submodel
- 4 Cyl
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
The part number for the actual replacement is 90601-S84-A01
Hello!

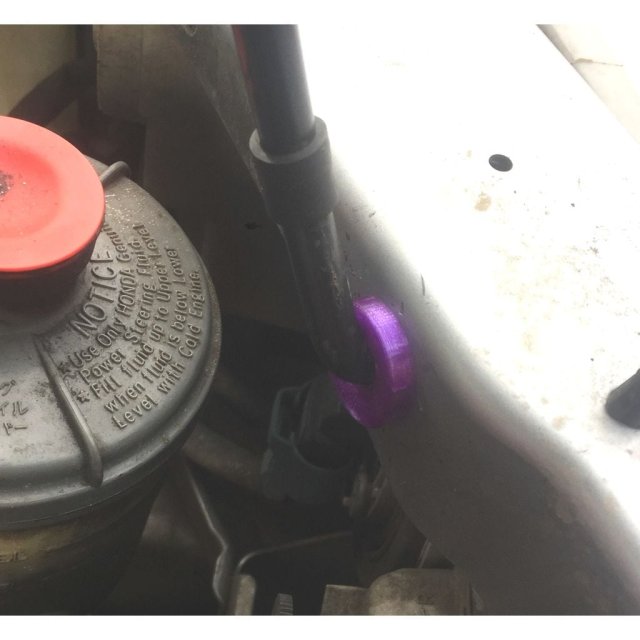

This is a grommet that holds the rod, that holds up your hood, on many (if not all) Hondas.
(Confirmed for 1998 Accord, and 2008 Fit)
When I bought my first car used, the plastic grommet that came with it from the factory was already broken. I finally got tired of having to mess with the rod to make sure it wouldn't slip out of the hole, that I decided to just make a new grommet out of flexible filament.
A replacement grommet would've been about 8 bucks, and a few days Amazon shipping.. Or a 10-minute design, then 20 minute print.
Bring a flat-head screw driver to help push the grommet into the hole on the car's frame. Depending on the hardness of the filament you use, you might be able to push it in with just your palm.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
