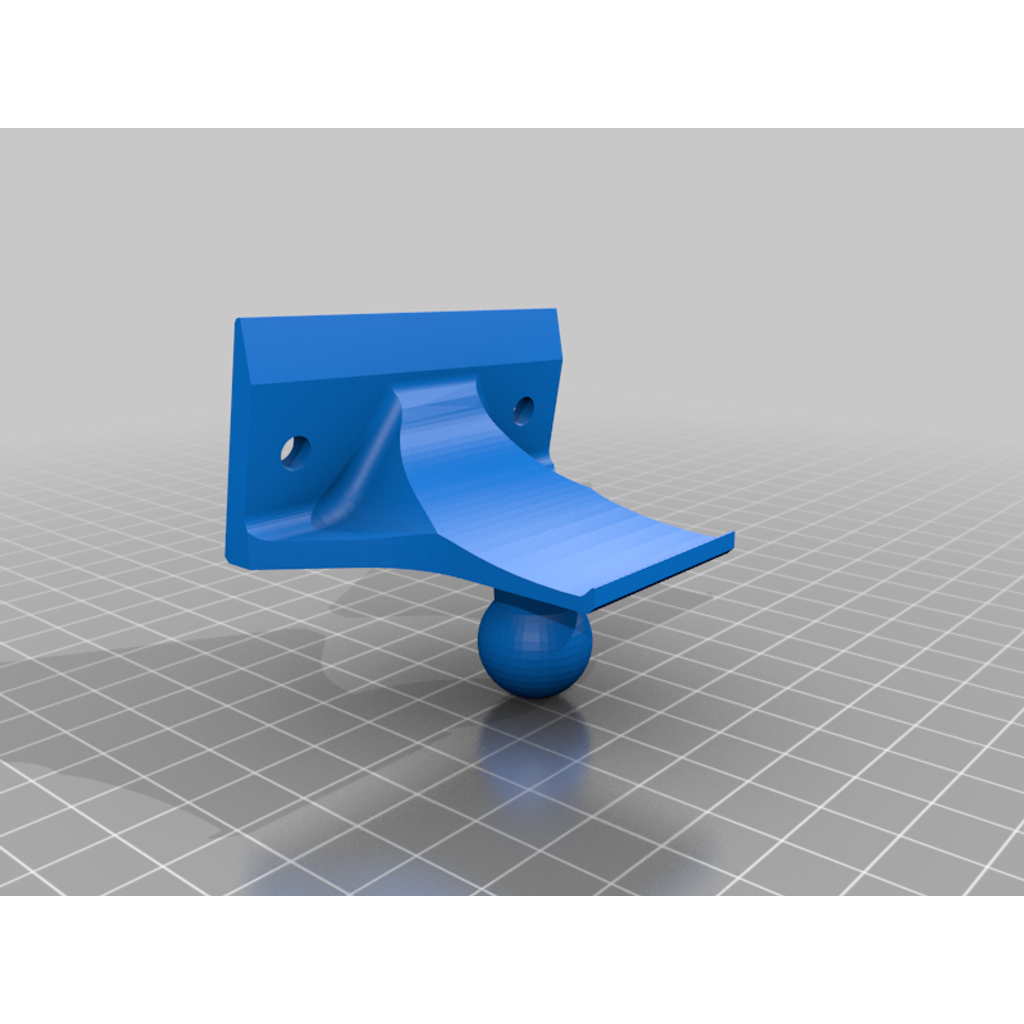

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Left Side Dash Mount for KTuner
Left Side Dash Mount for KTuner design listed for 2016–2021 Honda Civic. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Honda
- Model
- Civic
- Year range
- 2016–2021
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Could also be used for a cellphone or GPS mount.
Attaches to dashboard using 2 short pan head sheetmetal screws. Predrill underneath the plastic surround. Caution: Drill though only one wall. Surround plastic is soft, so do not overtighten the screws.
Printing:
Printed "prototype" parts in PLA on TEVO Flash. Since PLA will not withstand the high temperatures of an auto interior in the summer, the final part was printed in nylon on a MakerBot Method printer.
Set top surface (that attaches to underside of vent surround) as the surface on the build plate.
Set support angle to 60° so that the bottom lip prints without support.
Both SLA and STEP files uploaded. Let's see what you can do with this mounting location!
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
