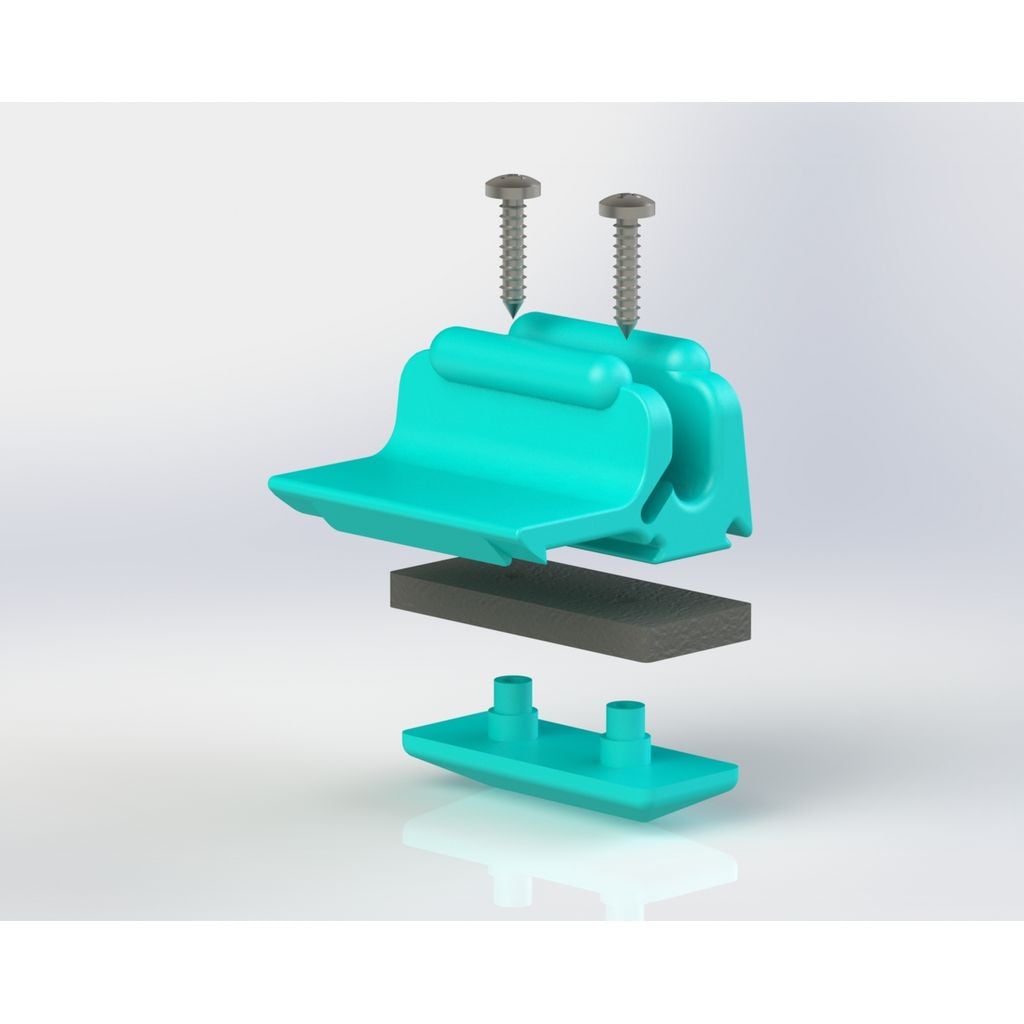

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
VW Sliding Window Handle
VW Sliding Window Handle design listed for 1979–1992 Volkswagen Transporter. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Volkswagen
- Model
- Transporter
- Year range
- 1979–1992
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
====================
(for English see below)
------------------------
Griff für die Carthago-Schiebefenster, wie beispielsweise beim Teca-Umbau verbaut.
Der Griff ersetzt den original, d.h. die Maße sind identisch.
* Inkl. Konterplatte.
* inkl. Gummiplatte (aus TPU drucken!)
* Falls die Schrauben gebrochen sind, diese passen:
3,5 x 16 (ISO 7049) Form C (mit Spitze)
Am besten in PETG drucken, damit die Federwirkung der Verschließmechanismus der originalen möglichst nahe kommt. PLA wird vermutlich brechen.
ENGLISH
==============
Handle for Carthago sliding window.
Handle replaces original parts, which means that dimensions are identical to original parts.
* Including counter plate.
* including ruber plate (to print in TPU!)
* In case the crews are broken, these ones fit:
3,5 x 16 (ISO 7049) Form C
Best to print in PETG, as it will keep the spring constant similar to original parts. Dont print in PLA, it will break surely.
LET ME KNOW IF YOU MADE ONE! ;-)
=====================
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
