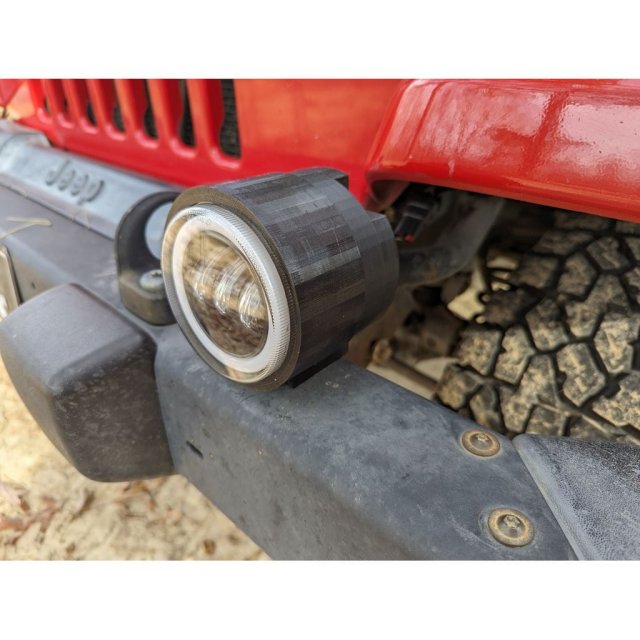

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Fog Light Adapter
Fog Light Adapter design listed for 1997–2006 Jeep Wrangler. Listed category: lighting. Verify dimensions, fitment and material suitability before printing.
- Make
- Jeep
- Model
- Wrangler
- Year range
- 1997–2006
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
The main adapter body is printed in PETG for durability. it includes a tab that engages with a hole in the stock bumper to prevent rotation. The fog light has a round boss on each side which engages in pockets provided in the adapter to secure the light and provide for vertical adjustment.
The light boot is printed in TPU and is to improve the appearance of the light and to provide some extra protection. It is designed to snap over the front lens of the fog light. The use of TPU allows the boot to flex as required for alignment purposes.
To assemble the fog light into the adapter, first insert a 5/16" x 1 hex head bolt into the hex pocket of the adapter. Use a large C-clamp or similar clamp to squeeze the top and bottom of the adapter. This will cause the sides of the adapter to widen slightly, allowing the light to be inserted into the adapter. When the clamp is removed, the adapter will spring back into shape and trap the light's bosses in the provided pockets, thus securing the light in the adapter.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
