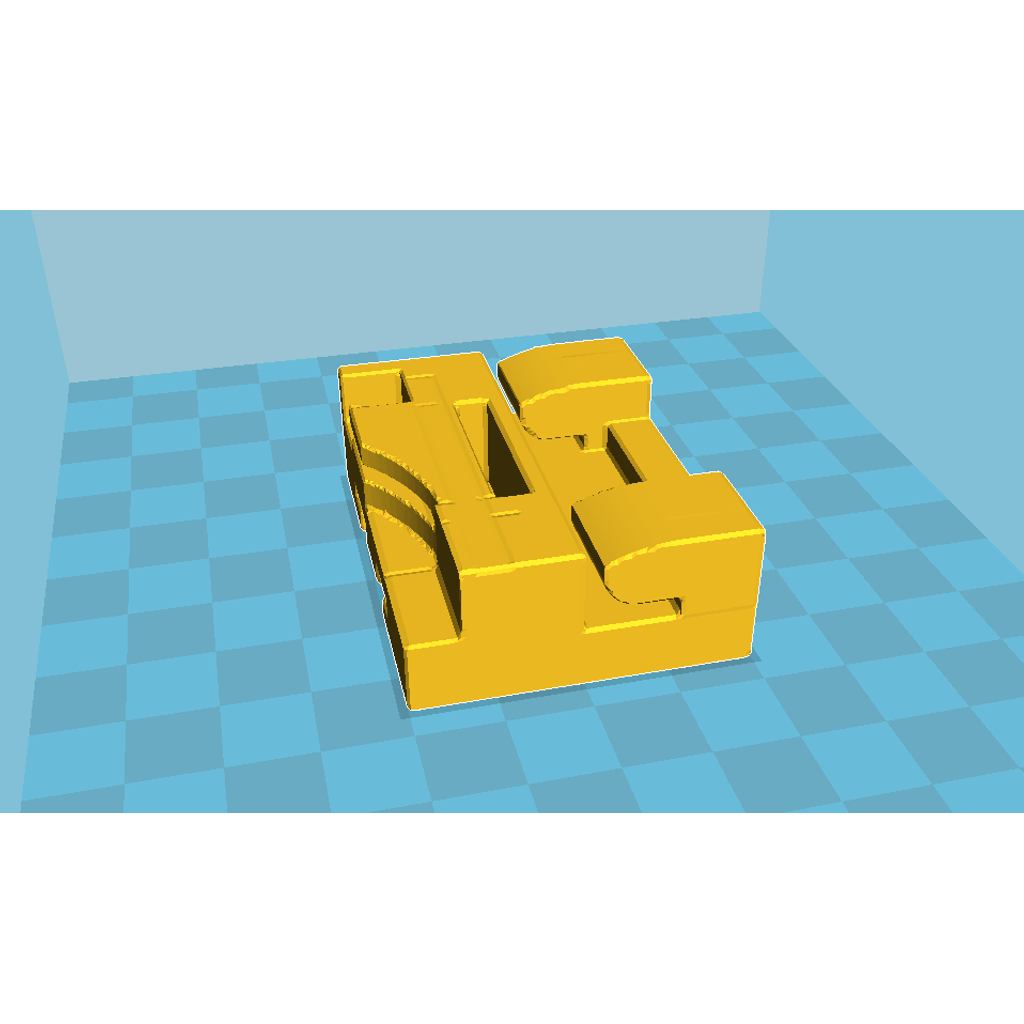

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Window Clip Regulator Heavy Duty Version
Window Clip Regulator Heavy Duty Version design listed for 2007 Hyundai i30. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Hyundai
- Model
- i30
- Year range
- 2007
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Depending on your printing tolerances, you may need to mill out some of the spaces. I recommend using a 2.5mm drill bit, which seems to give a good fit along the slide rails. If you have a dremel or similar then probably use that but i was able to use a drill bit and just push it sideways as required.
Also I discovered that putting the wire back together is actually quite easy if you drive the assembly hard up against the non rotating pulley and then use a g-clamp between the clip and the end stop to take out the spring tension so you can reconnect the last wire by hand with minimal effort. (see photo)
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
