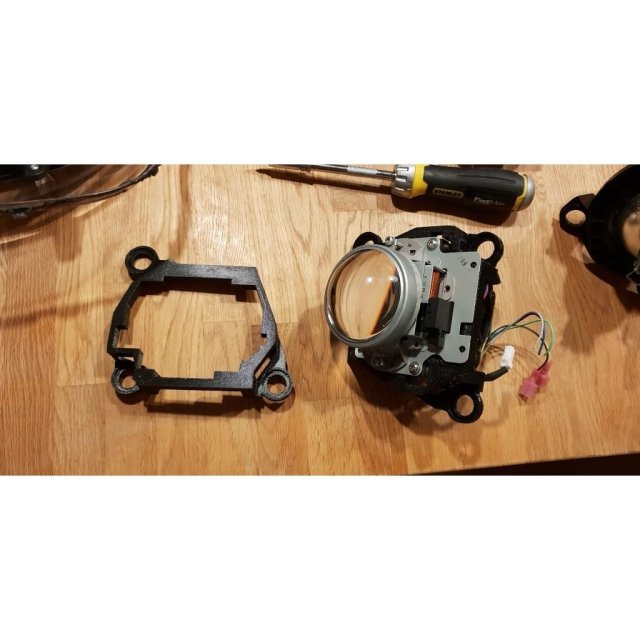

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Bi-LED Headlight Brackets
Bi-LED Headlight Brackets design listed for 2011–2015 Ford Explorer. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- Explorer
- Year range
- 2011–2015
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
In my case I used headlights ordered off Ebay as original headlights are very expensive.
To fit the Koito LED, Unplug the front wire of the unit, unscrew the glass lens part and the top flat metal bracket, then fit the body of the LED light onto the bracket, put the flat metal bracket back on, and screw it back in. The fit is very snug. You will need to drill holes for the screws that will hold the light on the bracket yourself.
I highly suggest printing this in black ABS or ABS/PC plastic, as that's what's commonly used in car parts.
I can't say if these fit exactly the same way inside the original Ford headlights (rather than cheaper copies) if opened.
Feel free to contact me if you have questions.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
