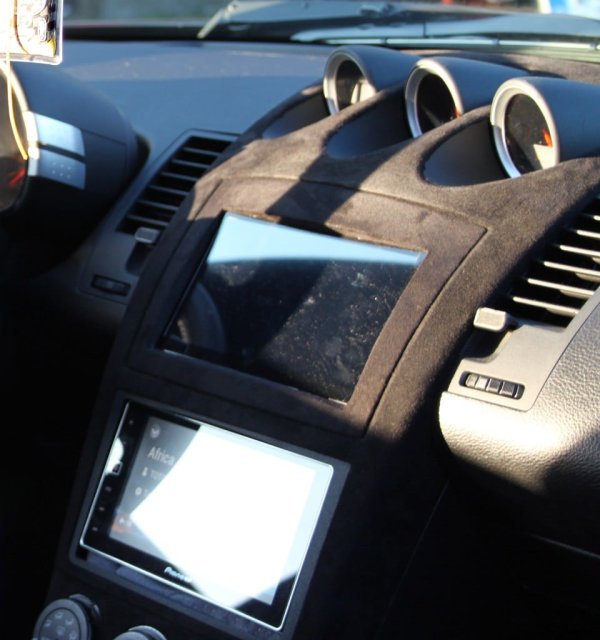

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Cubby 7inch screen holder
Cubby 7inch screen holder design listed for 2005 Nissan 350Z. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Nissan
- Model
- 350Z
- Year range
- 2005
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
This was originally a remix but it seems like the original model is not on Thingiverse anymore. Please make me aware of it, if its still online. I dont want to steal his stuff and not credit him.
The model is for a 350Z pre facelift interior, no idea how this fits in the facelift interior. You can melt in some thread inserts in the holes, then mount a screen. The mounting is somewhat whacky, you will have to find your own solution. I did some bracket out of scrap acrylic glass pieces, which I have molten into shape, then drilled some holes. The fitment is nowhere near perfect, but it works.
You can search for a screen on Aliexpress, pretty much any 7 inch screen that shows a Raspberry Pi on its back and has mounting holes in all 4 corners should fit. I attached a sample picture.
I am using a Raspberry Pi with OpenAutoPro, though thats discontinued at this moment. You can search for alternatives, though I have found none. For power delivery, I used this PCB: https://www.tindie.com/products/picotouch/raspberry-pi-automatic-onoff-v30-new-version/ . But thats also not being sold right now, you might find an alternative or just build it on your own with a 12V Relay.
Honest to god, I cannot find the STL for those white arms I have on my model. You need those to attach the screen holder to the center console. I dont know why I dont have them anymore, I really must have deleted them since this project is 2 years back now.
You can fabricate your own arms pretty easily with some acrylic glass. Just cut it to size and heat it with a lighter, then bend it to shape, then drill some holes in it. Or design your own arms, but that's quite some work.
Also I wanted to upload the .step file but it's bigger than 600mb and it just won't upload to thingiverse, not even after letting it sit for 2 hours.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
