Brake disc locator bolt replacement
Brake disc locator bolt replacement design listed for 1996–2016 Volvo V70. Listed category: other. Verify dimensions, fitment and material suitability before printing.
- Make
- Volvo
- Model
- V70
- Year range
- 1996–2016
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description
The locator bolt is not important for braking, but it is annoying to not have it located when shifting tires since the disc can rotate in the process. This is my fix for the moment.
The more heat resistant the fillament the better, as the brake discs can get quite hot.

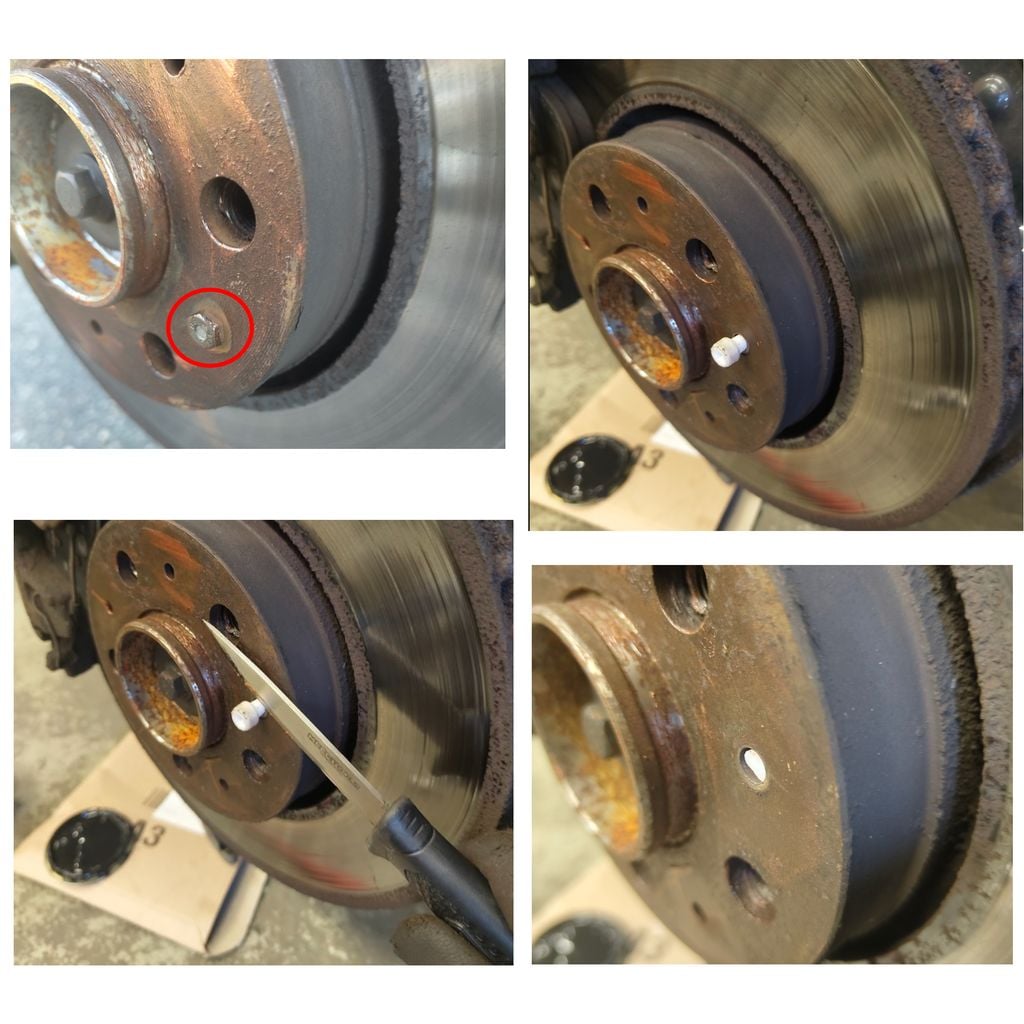

Simply unbolt the old locating bolt, it was an M10 if i remember correctly.
Screw in the plastic bolt by hand until it bottoms out, it is not going to hold anything in place so fingertight is good enough.
Take a knife and place it like in the picture, then take a hammer and hammer to brake off the head and become flush with the brake rotor.
Now the mod is finished, this will help locate the brake disc while changing tires.
It would be best to change the discs to more modern ones with a flush bolt but that is a more involved process.
The car i did this on is a Volvo S60 from 2005 with the 2.4i engine, but this is necessary on different model years and other cars such as the Volvo V70 as well.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Cost examples only. This design is not offered for sale; permission or specialist application review is required.
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
