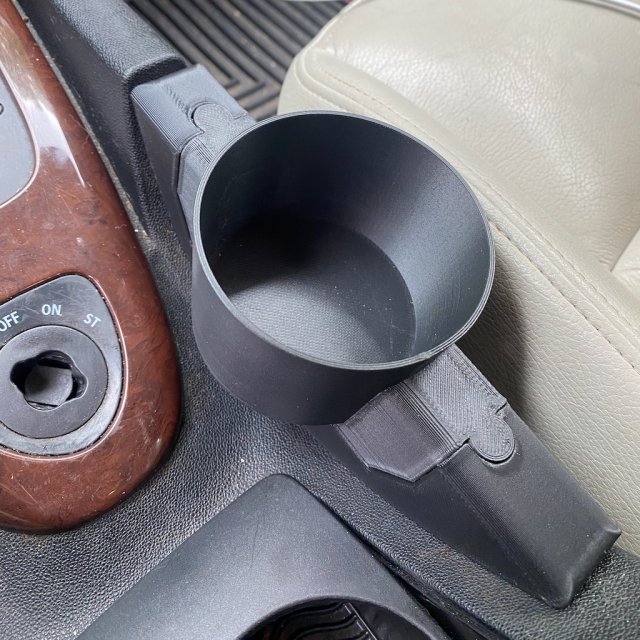

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Cup Holder
Cup Holder design listed for 2003–2010 Saab 9-3. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Saab
- Model
- 9-3
- Year range
- 2003–2010
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
This is a modular design which helps with printability, covers the screw holes, and allows for faster iterations.
I thought of making a phone slot ~~but haven't gotten around to it~~ and that is now available for the original version.
This should work for the NG 9-3 models, anything with the 2003-2010 interior.
If you need right hand drive, just mirror/reflect both parts in the slicer.
Printed at 0.2mm Quality with 30% cubic-subdivision infill, but .3 and 25% works fine. If you want a texture, try the fuzzy setting.
You will need some supports, though the design is meant to minimize them.
I use tree supports in Cura.
The two pieces take about 16 hours to print on my stock Ender3 v2. The modular joints are slip-fit and need to be tight but not too tight. They have 0.3 mm clearance all around. Consider this when choosing print quality.
Enjoy.
UPDATE 07.11.2024:
In a long overdue revision after some critical community feedback, I have added the demanded chamfer to the design.
I am keeping the original as an "easy print" version, and adding the new as the '2.6' version. The square parts are not going to line up with the rounded parts, so ensure you are printing '2.6' files.
This also necessitated a new cup design. The cup moved slightly, and I also added a matching blank module with chamfer for anyone wishing to create their own modules.. Just show us when you do!
Cheers
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
